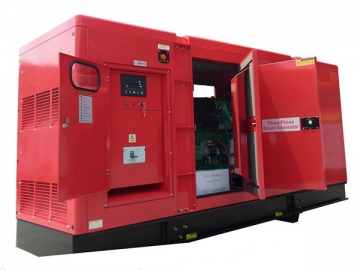

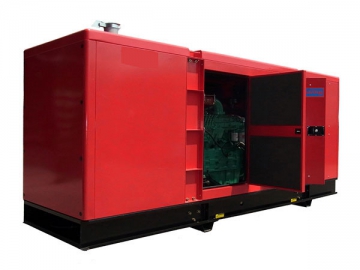

Kusing Diesel Generator, K33200
Technical Parameters
| Model | K33200 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 440.0 | 440.0 |
| KW | 352.0 | 352.0 | |
| Rated Power | KVA | 400.0 | 400.0 |
| KW | 320.0 | 320.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 577 | 577 |
| Fuel Consumption | G/KW.H | ≤207 | |

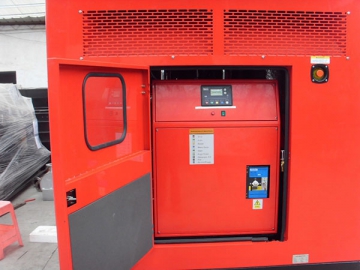

| Generator Controller | Auto Multi-function | ||
| Engine Model. | YM6S9L-D92AEF | ||
| Alternator Model. | TCU318C | ||
| Clinder No. | 6 | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size (MM) | Silent Type | 4200*1400*2100 | |
| Open Type | 2500*960*1400 | ||
| Optional | ATS (auto transfer switch) | ||
