Kusing Diesel Generator, K34000
Technical Parameters
| Model | K34000 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 550.0 | 591.3 |
| KW | 440.0 | 473.0 | |
| Rated Power | KVA | 500.0 | 537.5 |
| KW | 400.0 | 430.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 722 | 776 |
| Fuel Consumption | G/KW.H | ≤210 | |
| Generator Controller | Auto Multi-function | ||
| Engine Model. | SC25G610D2 | ||
| Alternator | TCU368A | ||
| Clinder No. | 12 | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size (MM) | Silent Type | 20FT | |
| Open Type | 3450*1650*2100 | ||

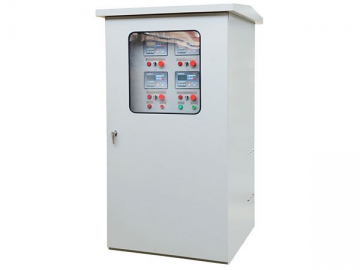

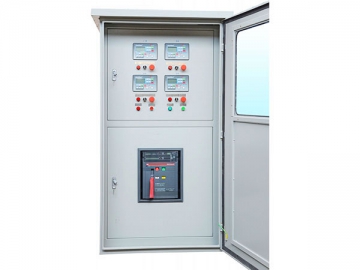

| Optional | ATS (auto transfer switch) | ||
