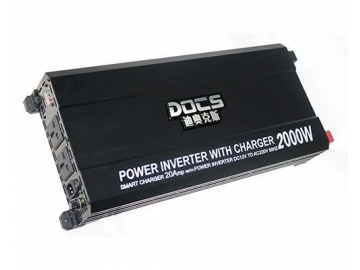

AC-DC / DC-AC Power Inverter 110V 15A 2000 Watt Pure Sine Wave Inverter
This 2000W pure sine wave inverter with battery charger features both a battery charger and automatic transfer switch. Connect the inverter to a DC battery power, and the other end connects to an AC battery power socket. When there is power in the AC power source socket, the built-in inverter charger will provide that power to the DC batteries. When the AC power source is off, the inverter will convert the DC power source into an AC power source and provide power for electrical appliances that need to be charged.
Inverter Section
- Housing: Aluminum
- Input voltage range:10.5-15V DC
- Output voltage:110V AC
- Output frequency:50Hz
- Continuous output:2000W
- Surge Power:4000W
- Output wave form: Pure sine wave
- No load current draw:＜1.2A
- Harmonic distortion:＜3%
- Over voltage protection/Under voltage protection: Yes
- Over load protection/Short circuit protection/Thermal Protection: Yes
Charger Section
- Input AC voltage range: 110V
- Constant current charging:15.0A+/-1.0A
- Constant voltage charging:14.4+/-0.3V DC
- Float charging voltage:13.6+/-0.3V DC
- Float charging current:3.0+/-1.0A
Interchange Section
- Automatic transfer from housing hold AC supply to inverter battery AC supply: Within 40 milliseconds
- Automatic transfer from inverter battery AC supply to housing hold AC supply: Within 10 seconds
- Dimension: 82.5*220*400mm
- Weight: 4.60kg
