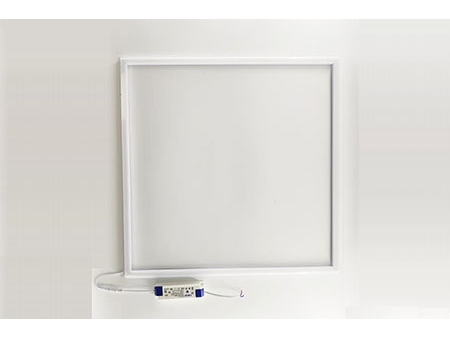

LED edge-lit flat panel lights are a newly designed, dimmable, compact, and elegant lighting solution. They are lighter than traditional panel lights of the same size, with an excellent lighting performance. We offer a variety of different designs and wattages according to customer needs.

Specifications
  • Power: 36W /42W/48W
  • LED Type: Epistar
  • LED Driver: LIFUD/CE
  • Size: 60*60CM, 60x120cm, 30x120cm
  • Luminous Efficacy: 90lm/w and 110lm/w optional
  • Input Voltage: AC 100-240V
  • Power Frequency: 50-60Hz
  • Power Efficiency: >90%
  • CCT: 2700K,3000K, 4000K, 5000K, 6000K
  • CRI: Ra80/Ra90
  • PF: >0.9
  • Beam Angle: 120°
  • Fixture Material: Aluminum PC
  • Working Temperature: -25℃ - 45℃
  • IP Rating: IP20
  • Lifespan: 7 years at 12 hours/day
  • Color: White
  • Intelligent Lighting Control: 1~10V Dim/Triac/DALi control/Emergency
PDF Download
Application

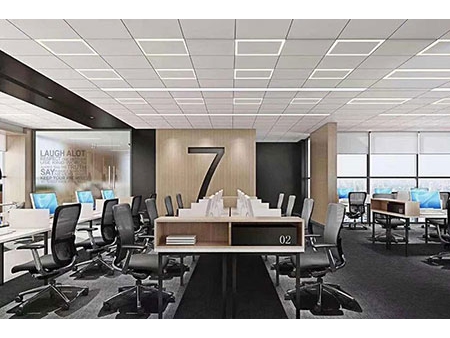

  • Office room
  • Office room
