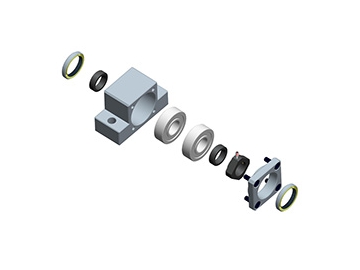

Ball Screw Support Unit, Type LEK Fixed Side

Ball Screw Support Unit, Type LEK Fixed Side
Ball Screw Support Unit, Type LEK Fixed Side
Ball Screw Support Unit, Type LEK Fixed Side
Dimensions
Model L L3 B H b h1±0.02 B1 H1 P d1 d3 d4 Mass (kg)
LEK10-2 24 6 70 43 35 25 36 24 52 9 21 26 0.45
LEK12-2 24 6 70 43 35 25 36 24 52 9 24 28 0.42
LEK15-2 25 5 80 49 40 30 41 25 60 11 28 32 0.52
LEK20-2 42 10 95 58 47.5 30 56 25 75 11 37 47 1.25
