Kusing Diesel Generator, K35000
Technical Parameters
| Model | K35000 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 687.5 | 715.0 |
| KW | 550.0 | 572.0 | |
| Rated Power | KVA | 625.0 | 650.0 |
| KW | 500.0 | 520.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 902 | 938 |
| Fuel Consumption | G/KW.H | ≤210 | |

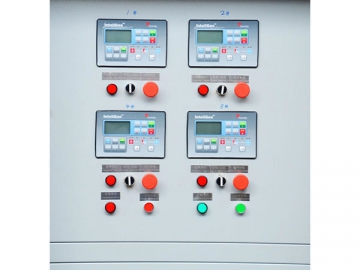

| Generator Controller | Auto Multi-function | ||
| Engine Model. | SC25G690D2 | ||
| Alternator Model. | TCU368D | ||
| Clinder No. | 12 | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||

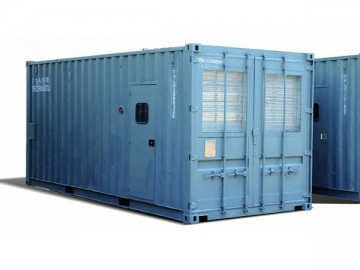

| Size (MM) | Silent Type | 20FT | |
| Open Type | 3600*1700*2100 | ||

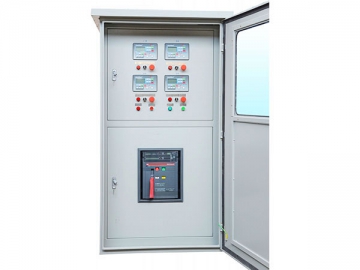

| Optional | ATS (auto transfer switch) | ||
