Kusing Diesel Generator, K36500
Technical Parameters
| Model | K36500 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 866.3 | 893.8 |
| KW | 693.0 | 715.0 | |
| Rated Power | KVA | 787.5 | 812.5 |
| KW | 630.0 | 650.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 1137 | 1173 |
| Fuel Consumption | G/KW.H | ≤207 | |

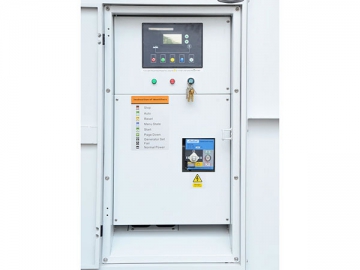

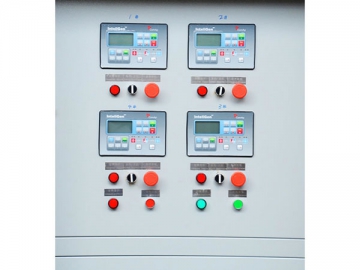

| Generator Controller | Auto Multi-function | ||
| Engine Model. | SC33W990D2 | ||
| Alternator Model. | TCU428A | ||
| Clinder No. | 12 | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||

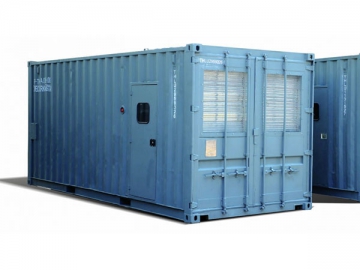

| Size (MM) | Silent Type | 20FT | |
| Open Type | 3700*1700*2200 | ||

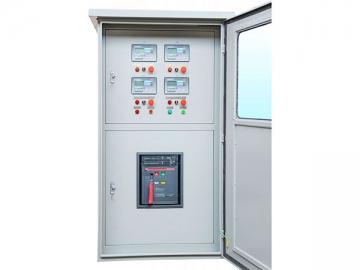

| Optional | ATS (auto transfer switch) | ||
