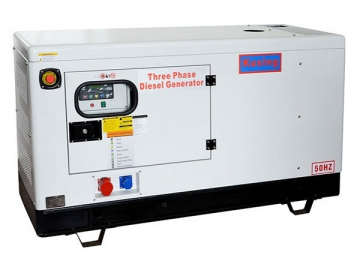

Kusing Diesel Generator, K30160
Technical Parameters
| Model | K30160 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 22.0 | 24.8 |
| KW | 17.6 | 19.8 | |
| Rated Power | KVA | 20.0 | 22.5 |
| KW | 16.0 | 18.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 29 | 32 |
| Fuel Consumption | G/KW.H | ≤230 | |
| Generator Controller | Auto Multi-function | ||
| Engine Model. | YSD490 | ||
| Alternator | TCU188A | ||
| Clinder No. | 4 | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size (MM) | Silent Type | 2250*950*1100 | |
| Open Type | 1530*700*950 | ||
| Optional | ATS (auto transfer switch) | ||
