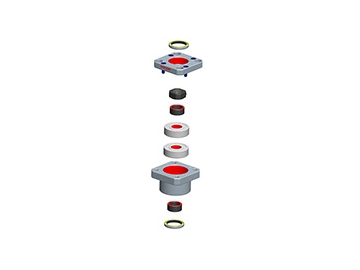

Ball Screw Support Unit, Type LFK Fixed Side

Ball Screw Support Unit, Type LFK Fixed Side
Ball Screw Support Unit, Type LFK Fixed Side
Ball Screw Support Unit, Type LFK Fixed Side
Request a Quote
Dimensions
Model d L H F E D A PCD B L1 T1 d1 d2 φd3 h M Mass
(kg)
LFK6-E 6 20 7 13 22 22 36 28 28 5.5 3.5 3.4 6.5 9.5 4 M3 0.08
LFK8-E 8 23 9 14 26 28 43 35 35 7 4 3.4 6.5 11.5 4 M3 0.15
LFK10 10 27 10 17 29.5 34 52 42 42 7.5 5 4.5 8 14.5 4 M3 0.21
LFK12 12 27 10 17 29.5 36 54 44 44 7.5 5 4.5 8 15.5 4 M3 0.22
LFK15 15 32 15 17 36 40 63 50 52 10 6 5.5 9.5 19.5 6 M3 0.39
LFK17 17 45 22 23 47 50 77 62 61 11 9 6.6 11 23.5 10 M4 0.75
LFK20 20 52 22 30 50 57 85 70 68 8 10 6.6 11 24.5 10 M4 1.09
LFK25 25 57 27 30 60 63 98 80 79 13 10 9 15 31.5 13 M5 1.49
LFK30 30 62 30 32 61 75 117 95 93 11 12 11 17.5 37.5 15 M6 2.32
