Hydraulic Tank Drain Valve, Brass Body
- Forged brass body
- Aluminum cast butterfly wing handle, brown color
- PTFE ball seats
- Working Pressure: 250 PSI
- Temp range: -40℃-108℃
- M22 x 1.5 Male x 5/8" I.D. Hose barb
- Hydraulic oil compatibility with J20C
- Cleanliness per JDG-G169 Class 5.4 1/2mm Max
- Particle size
- Ends to be capped
- Valve to be shipped in closed position

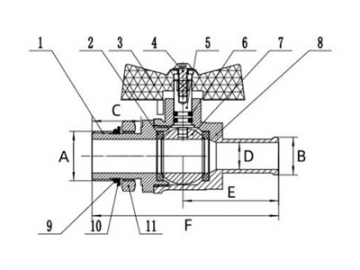

| Part No. | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | Carton Qty. | Wt. (lbs.) |
| BHV-1 | M22*1.5 | 5/8" | 0.86 | 0.47 | 1.68 | 3.28 | 80 | 0.52 |
| Part No. | Description | Material |
| 1 | Valve Cap | Brass |
| 2 | Ball Seats | PTFE |
| 3 | Handle | Aluminum ,Brown |
| 4 | Screw & Spring Washer & Flat Washer | Steel |
| 5 | Valve Stem | Brass |
| 6 | O Ring | NBR |
| 7 | Ball | Brass |
| 8 | Valve Body | Brass |
| 9 | O Ring | NBR |
| 10 | Washer | Copper |
| 11 | Nut | Brass |
