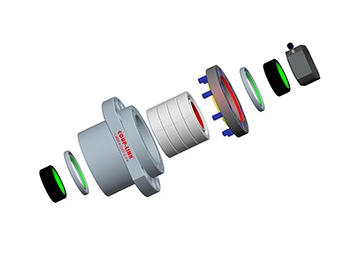

Ball Screw Support Unit, Type LWBK Fixed Side

Ball Screw Support Unit, Type LWBK Fixed Side
Ball Screw Support Unit, Type LWBK Fixed Side
Ball Screw Support Unit, Type LWBK Fixed Side
: http://couplingcn.com/2-1-4-type-lwbk-fixed-side.html
Dimensions
Model d L L1 L2 L3 B H b h1 B1 H1 P C1 C2 d1 d2 d3 h M Mass (kg)
LWBK10 10 24 6 29.5 6 70 43 35 25 36 35 52 - - 9 14 14.5 11 M3 0.5
LWBK12 12 24 6 29.5 6 70 43 35 25 36 35 52 - - 9 14 15.5 11 M4 0.5
LWBK15 15 25 6 32 4 80 50 40 30 41 40 60 - - 11 17 19.5 15 M4 0.7
LWBK20 20 42 10 50 10 95 58 47.5 30 56 45 75 22 10 11 17 24.5 15 M4 1.4
LWBK25 25 48 12 58 14 105 68 52.5 35 66 25 85 30 9 11 - 31.5 - M5 1.9
