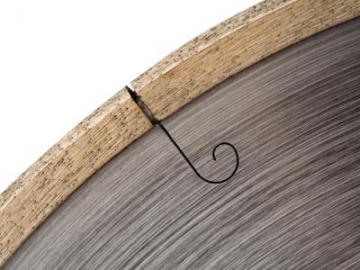

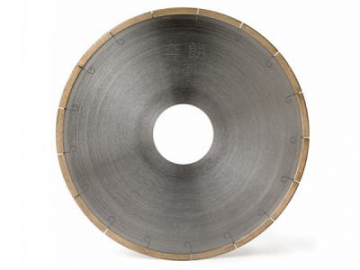

Diamond Saw Blade for Crystal Stone Cutting
Diamond saw blades for crystal stone cutting are primarily used for cutting composite microcrystalline plates. They are applicable for both portable bridge cutters and manual bridge cutters.
Technical Parameters:Working Condition: Wet cutting

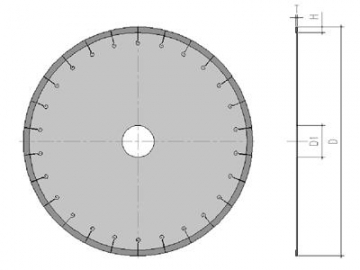

| Outer Diameter(mm/inch) | Inside Diameter(mm/inch) | Segment Size(mm) | Segment Height(mm) | Segment Shape | Line Speed (m/s） |
| 300/12 " | 50/60 | 2.4 | 9 | Segmented | 35-50 |
| 350/14 " | 50/60 | 2.8 | 9 | Segmented | 35-50 |
| 400/16 " | 50/60 | 3.0 | 9 | Segmented | 35-50 |
Remark: Other specs are available upon request.
