KCH-600D Horizontal flow wrapper
Request a Quote
The KCH-600D flow wrapper packaging machine is compatible with film with a maximum width of 600mm to produce pillow type bags with lengths ranging from 130-450mm and widths from 50-280mm. The machine is designed to pack large volume products. We can also offer more options, contact us to learn more.
Bag types and samples

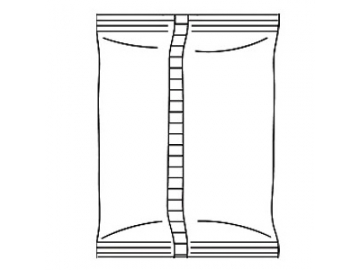

- Pillow bag

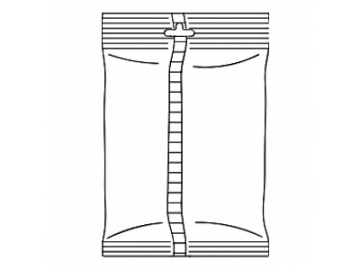

- Pillow bag with euro hole

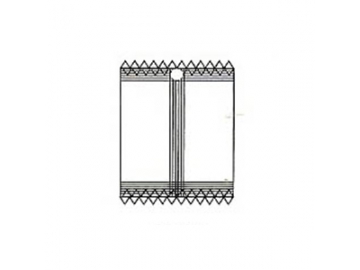

- Pillow bag with round hole

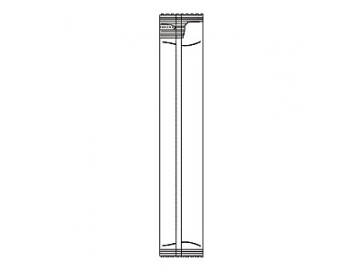

- Stick seal bag
- Linking bag
Specification
| Model | KCH-600D |
| Film width | Max. 600mm |
| Bag length | 130-450mm |
| Bag width | 50-280mm |
| Product height | Max.120mm |
| Film diameter | Max. 320mm |
| Packing speed | 30-180bag/min |
| Power supply | 220V, 50/60HZ, 2.6KVA |
| Machine size | (L) 820 * (W)4020 * (H) 1450mm |
| Weight | 450Kg |
Details
The 7-inch touch screen offers clear and easy to set parameters.
The bag forming unit can be freely adjusted, offering various specifications without having to change the mold.
The flow-pack wrapper has the ability to locate and cut off without the film sticking to blade, thus saving film and retaining the bag length error to within a length of 2mm, saving money.
