Hydraulic Tank Drain Valve, Stainless Steel Body
Stainless Steel Hydraulic Tank Drain Valve
- Stainless Steel Body
- Zinc Cast T Handle
- With PTFE Ball Seats and Viton Sealing
- Working Pressure: 250PSI
- Working Temperature: -40 to 400F Degree
- M22x1.5 Male x 5/8" I.D. Hose Barb

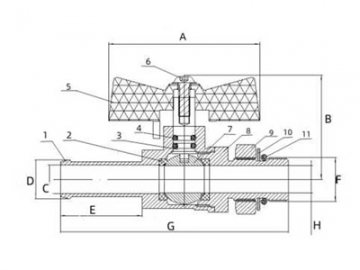

| Part No. | A (In) | B (In) | C (In) | D (In) | E (In) | F | G (In) | H (In) | Carton Qty. | Wt. (lbs.) |
| AXE90834 | 2.01 | 1.54 | 0.39 | 0.56 | 1.17 | M16*1.5 | 3.27 | 0.39 |
| Part No. | Description | Material |
| 1 | Body | Stainless Steel |
| 2 | Seat | PTFE |
| 3 | Stem | Stainless Steel |
| 4 | O-Ring | Viton |
| 5 | Handle | Zinc alloy |
| 6 | Screw | Carbon Steel |
| 7 | Ball | Stainless Steel |
| 8 | Cap | Stainless Steel |
| 9 | Nut | Stainless Steel |
| 10 | Washer | Brass |
| 11 | O-Ring | Viton |
