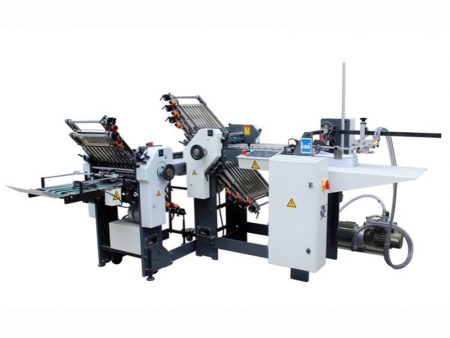

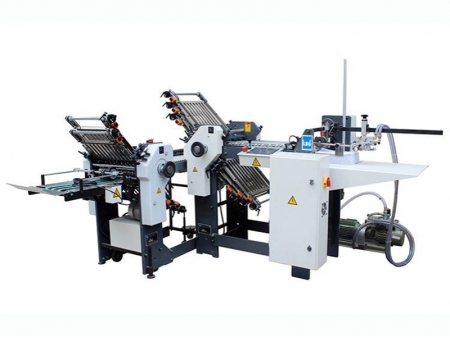

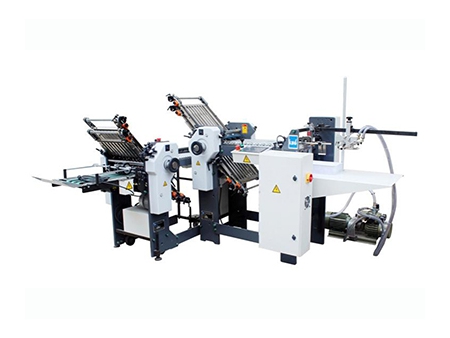

Buckle Folder (4 Buckles and 4 Buckles)
KMD’s 360T buckle folder (4 buckles and 4 buckles) : There are 4 buckle plates on the main machine and 4 buckle plates on the bracket of the tail buckles. The main machine can achieve 4 times parallel folding and the tail buckles can be parallel and vertical with the machine to achieve 4 times horizontal parallel folds, 4 times vertical parallel folding. The buckle folder can also achieve half folding, double parallel folding and roll folding.
Parameters- Max feeding sheet size (W*L) : 360*750mm
- Min feeding sheet size (W*L) : 50*100mm
- Sheet range : 40-157g
- Max folding roller speed : 180m/min
- Max. height of paper heap : 500mm
- Machine power : 3.3kw
- Machine net weight : 700kg
- Overall dimension(L*W*H) : 4000*1000*1415mm
