6 Buckle Paper Folder

6 Buckle Paper Folder
6 Buckle Paper Folder
6 Buckle Paper Folder
Request a Quote

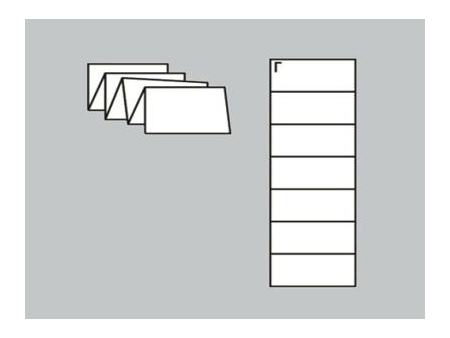

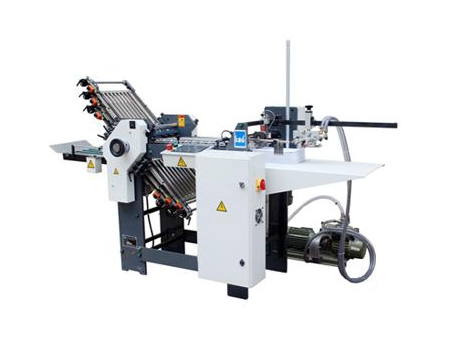

KMD’s 6 buckle paper folder features a maximum paper size of 360×750mm. The machine is equipped with 6 buckle plates. It can directly realize 6 times parallel folding, and it can also be configured with 2 tail buckles, 4 tail buckles, 6 tail buckles, 8 tail buckles, 10 tail buckles according to the requirements to achieve different complex folding methods.

Parameters
  • Max feeding sheet size (W*L) : 360*750mm
  • Min feeding sheet size (W*L) : 50*100mm
  • Sheet range : 40-157g
  • Max folding roller speed : 180m/min
  • Max. height of paper heap : 500mm
  • Machine power : 3kw
  • Machine net weight : 400kg
  • Overall dimension(L*W*H) : 2750*1000*1415mm
