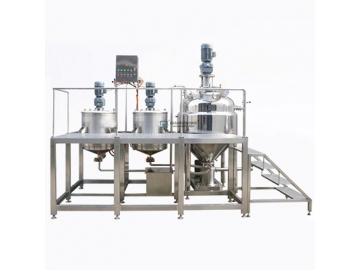

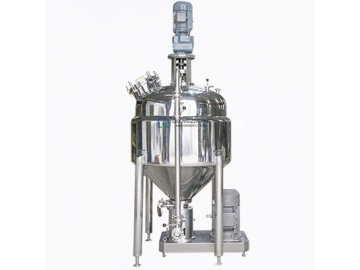

Vacuum Homogenization Emulsifier
Applications
Vacuum homogenization emulsifiers are widely used for cosmetics production, such as ointment, cream, and lotion. Meanwhile, vacuum homogenization emulsifiers also can handle highly viscous materials in the pharmaceutical, food, and fine chemical engineering industry.
Features
- Equipped with CIP cleaning system, vacuum homogenization emulsifier is easy to clean.
- Vacuum deaeration enables sanitary aseptic requirements, and can adopt suction feeding to handle materials, especially the powder materials. Vacuum sucking can effectively avoid the dust.
- According to the specific requirements, the tank can be used for heating or cooling materials. The heating methods contain electric heating and steam heating.
Technical Parameters
| Volume (L) | 100 | 300 | 500 | 1000 | 1500 | 2000 | |
| Mixing | Power (kW) | 1.5 | 3 | 3-4 | 4-5.5 | 5.5-7.5 | 5.5-7.5 |
| Speed (r/min) | 65 (customized) | ||||||
| Emulsifying | Power (kW) | 2.2-4 | 3-7.5 | 5.5-8 | 7.5-11 | 7.5-11 | 11-15 |
| Speed (r/min) | customized | ||||||
| Vacuum Pump Power (kW) | 0.37 | 1.5 | 1.5 | 3 | 4 | 5.5 | |
| Vacuum Degree (MPa) | 0.09 | ||||||
| Heating Method | Electric heating or steam heating | ||||||
