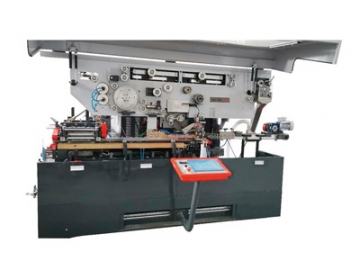

NEW DODO-400D Automatic Canbody Welder
This automatic canbody welder is designed for manufacturing milk powder cans and other large can types. It can achieve high quality rounding and welding processes.
Features
- The electronic control system of the automatic canbody welder consists of an easy to use interface, PLC system, and servo system.
- Its static variable frequency power source provides stability and minimizes energy consumption. It has its own independent air conditioning system.
- The automatic fault detection system will automatically sound an alarm in the event of a malfunction and then provide you with troubleshooting solutions.

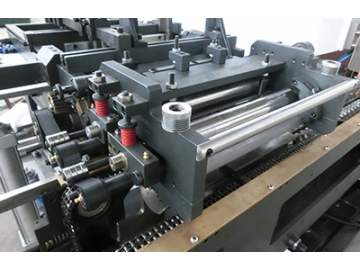

- Using a special rounding device, the equipment can process various types of tinplate for different can bodies. It is also equipped with an automatic double sheet monitoring and ejection system.

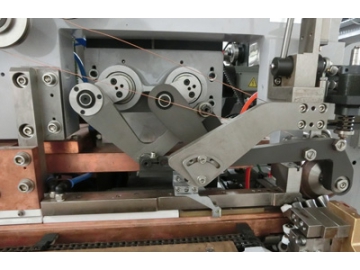

- A ceramic roller is equipped to profile copper wire that greatly improves insulation and reduces wear and tear. It is outfitted with a roller cooling device to prevent parts from overheating during copper wire profiling.
- The copper wire profiling system is equipped with a rodless cylinder and cooling system with tension compensation and a tension monitoring function. It can ensure the tension, ductility, and line speed of copper wire so as to improve the overall welding quality.
- The conveying system features ceramic parts to prevent damage to the can body.

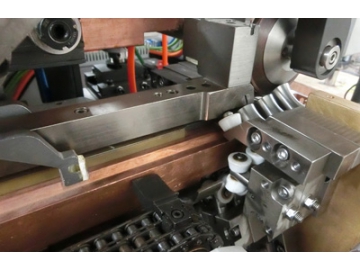

- The Z-rail is made of super wear-resistant ceramic material.
- Servo based can feeding system offers high speed can feeding and stable running minimized noise.
- This machine has a protective shield and support front and rear seam attenuation control. It is suitable for DR tinplate and normal tinplate.
- It has Internal and external nitrogen protection devices.
- It uses high quality pneumatic components manufactured by MAC, Festo, and SMC.
Technical Specifications
| Welding speed | 55m/min（max） |
| Production output | Can size #401: 300cans/min（Max） Can size #502：250cans/min（Max） Can size #603：200cans/min（Max） |
| Welding points distance | 0.5～0.9mm |
| Overlap width | 0.25～0.6mm |
| Sheet thickness | 0.16～0.30mm |
| Can inner diameter range | ￠52～￠153mm |
| Can height range | 65～305mm |
| Hardness | T2.5～DR8 |
| Wire diameter | ￠1.24～1.38mm |
| Power supply | Three phase Voltage：380V Frequency: 50Hz Power consumption：35Kw |
| Welding frequency | 200～450Hz |
| Cooling water | >0.5MPa,12～18℃,50L/min |
| Air pressure and consumption | >800L/min, >0.5MPa |
