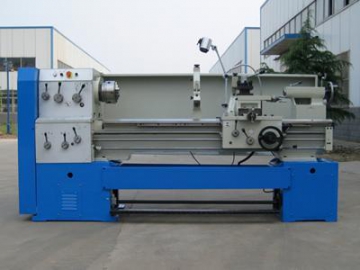

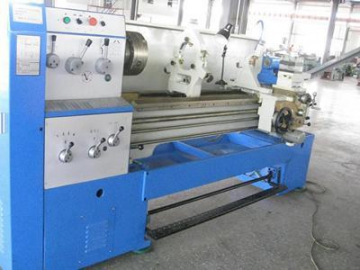

Introduction
The CC series metalworking lathe is used to produce cylindrical, bore, end face and conic parts, as well as drill holes, ream holes and pull oil grooves. It is often used to process in different measurement units, including metric, inch, module and pitch threads, making it suitable for high precision applications in low volume production and machine reparation plants.

This lathe can process steel, cast iron, nonferrous metals and nonmetal material. The precision and surface roughness of parts processed in this lathe reach level IT7 and 1.6, respectively.

It is easy to use this series due to the simple structure and high performance.

Characteristic

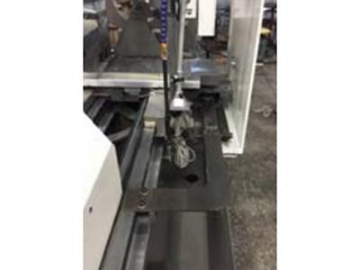

  • The slide way of lathe bed uses a super audio frequency induction heating and quenching, giving the lathe its long service life.
  • The slide way operates through turning, giving it a higher precision.

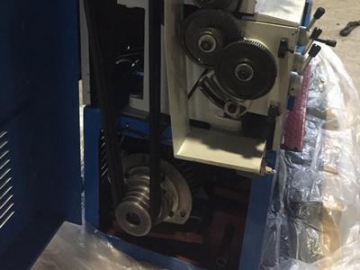

  • The gear inside the spindle box is processed using precise turning, which means operation emits little to no noise.
  • This lathe can be used to process workpieces with threads.
  • The feeding box stores oil, which is used for lubrication.
  • The lathe is safe and reliable due to the electric elements housed in a specialized electrical cabinet.
  • The lathe is easy to operate, as it is equipped with both a foot brake and electromagnetic brake.

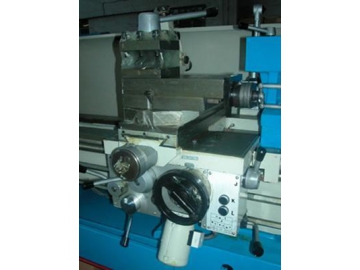

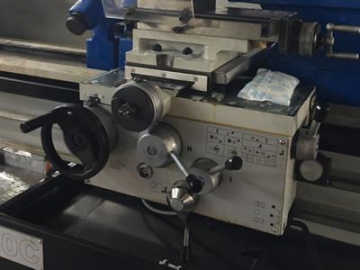

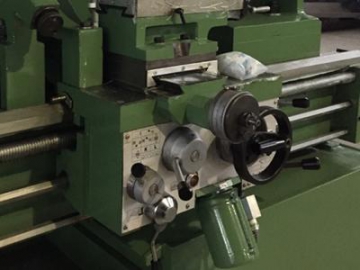

  • The sliding box is equipped with forward and backward accessories, which control the movement speed of the knife rest.
Technical Specifications
Item and Model C6½36C C6½40C C6½50C
Processing capacity Max swing over bed 360 400 500
Max swing over cross slide 190 230 330
Max swing over gap 520 560 660
Center distance 750mm 1000mm 1500mm
Bed width 360
Spindle Spindle hole 52mm
Spindle nose C6
Spindle taper MT6

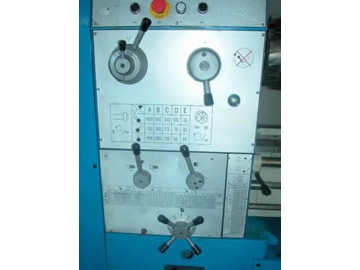

Spindle speed (number) 40-1400rpm (9 Steps), 1600rpm need special order
Feeding Metric threads range (Kinds) 0.25-14mm (19 Kinds)
Inch threads range (Kinds) 2-40/inch
Module threads range (Kinds) 0.5-3.5mm (11kinds)
Slide plate Cross slide travel 180mm
222mm
Compound rest travel 95mm
Cross-section size of tool shank 20×20mm²

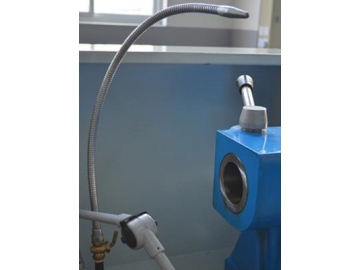

Tailstock Taper of tall stock sleeve MT4
Diameter of tall stock sleeve 65mm
Travel of tall stock sleeve 140mm
Main motor power 4KW 5.5KW
Packing size (L×W×H)
Center distance 750mm 2220×1150×1590mm

1000mm 2470×1150×1590mm

2500mm 2970×1150×1590mm
Net weight /Gross weight (kgs)
Center distance 750mm 1350/2000 1400/2050 1500/2150

1000mm 1450/2100 1500/2150 1600/2250

1500mm 1600/2250 1650/2300 1750/2400

Standard Accessory
1. 3-jaw chuck
2. Centre & centre sleeve
3. Wrenches
4. Bolts
5. Oil gun

Special Accessory

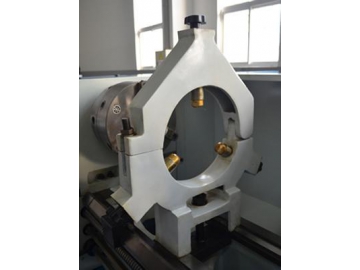

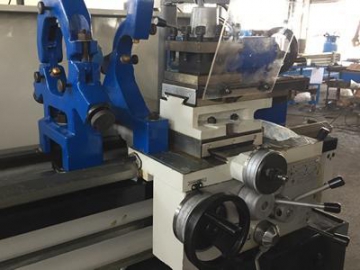

1. Steady rest
2. Follower rest
3. 4-jaw chuck
4. Face plate
5. Operation manual

Optional Accessories
  • 1. Taper ruler

  • 2. Electromagnetic brake and mechanical brake

3. Slip-hand maneuvering wheel (left-hand turn maneuver wheel and left-hand turn maneuver wheel with metric or English calibration loop and single-scale or double scale).

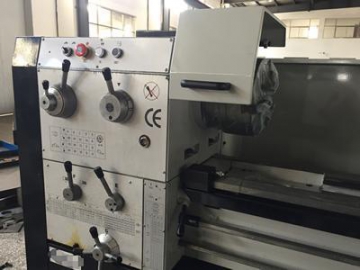

4. CE protective equipment (chuck protection, tool-post protection and leadscrew protection can be chosen).

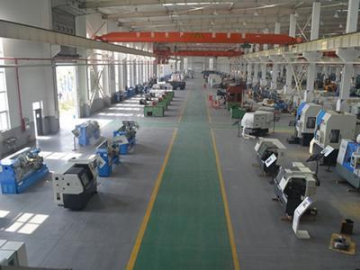

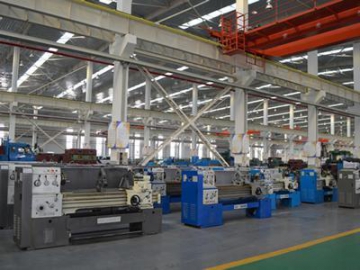

Factory
