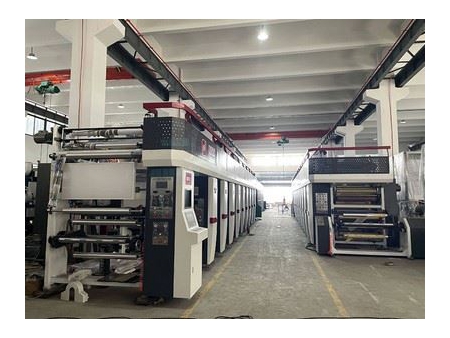

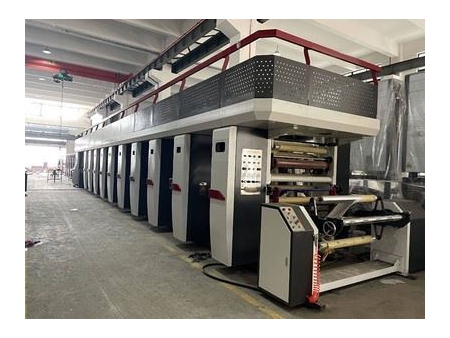

Automatic Register Rotogravure Printing Machine (Rotogravure Press), YAD-A5
The auto color register rotogravure printing machine is designed for high quality multi-color printing operations on all types of plastic and paper roll materials.
Note: optional double sided printing structure, horizontal color register structure, water cooling device, etc.
Features
- Independent unwinder and rewinder
- Unwinding and rewinding AB shaft for the automatic receiving of material for non-stop printing
- Air-cooling device (optional water cooling system)
- Float arm type double cylinder printing press roll
- Pneumatic type shaft-less cylinder loading structure
- Double room type air cycling dryer
- External type heating structure
- Video image picture system
- Independent unit structure
Specification
| Model | YAD-8800A5 | YAD-81100A5 |
| Color | 8 color | 8 color |
| Printing width | 800mm | 1100mm |
| Paper core diameter | ¢76mm | ¢76mm |
| Material roll diameter | ¢600mm | ¢600mm |
| Printing plate cylinder diameter | ¢100~300 | ¢100~300 |
| Register precision | ±0.12mm | ±0.12mm |
| Max.speed | 160m/min | 160m/min |
| Total power | 135kw | 160kw |
| Overall dimension | 16500x2650x2850mm | 16500x2950x2850mm |
| Weight | 18000kg | 21000kg |
