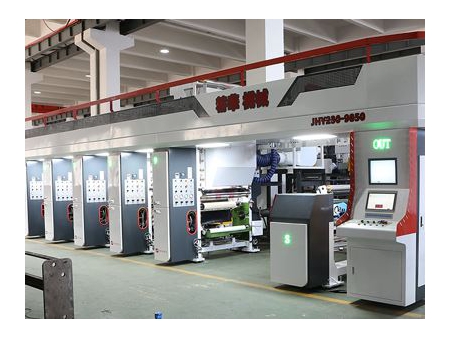

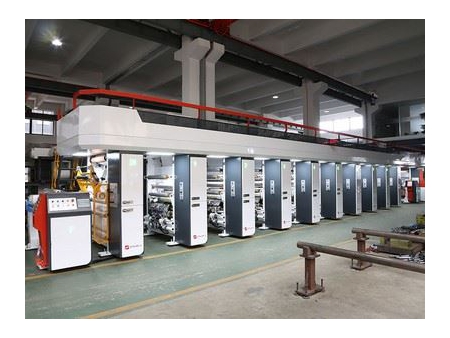

Automatic Register Rotogravure Printing Machine (Rotogravure Press), YAD-K3

Automatic Register Rotogravure Printing Machine (Rotogravure Press), YAD-K3
Automatic Register Rotogravure Printing Machine (Rotogravure Press), YAD-K3
Automatic Register Rotogravure Printing Machine (Rotogravure Press), YAD-K3

The Auto Register Rotogravure Printing Machine, YAD-K3 is designed for cost effective, automatically controlled high quality printing operations. Our rotogravure machines are suitable for printing on a variety of different plastic and paper materials.
Note: optional horizontal color register structure, double sided printing structure, electronic transmission structure

Features
  • Independent heavy duty type frame
  • Large gear box for shaft-less plate cylinder loading
  • Unwinding and rewinding with double roll non-stop material roll changing
  • Four floating rollers and seven motor closed loops for tension control
  • High output speed with incredible precision
  • Water and air cooling systems
  • Double screw rod longitudinal auto color register
  • Three direction adjustable double shaft pneumatic control scraping blade (movement: ±6mm)
  • External type independent heating system
  • Touch screen controller for tension controlling
  • High static picture and precision color register system
Specification
Model
YAD-8800K3
YAD-81100K3
Inner diameter of core 76mm 76mm
Diameter of material 600mm 600mm
Diameter of printing plate 100-300mm 100-300mm
Max. printing width 800mm 1100mm
Register precision 0.08mm 0.08mm
Max. speed 260m/min 260m/min
Overall dimensions(mm) 16225x2495x2965 16225x2895x2965
Total power 155kw 180kw
Weight 23000kg 28000kg
