Description
With a creative design and application of the latest in patent technology, the LED beacon provides a continuous and even light in a horizontal 360º manner. Its performance is safe, highly efficient, and reliable. Installation is easy and convenient.

Product selection:

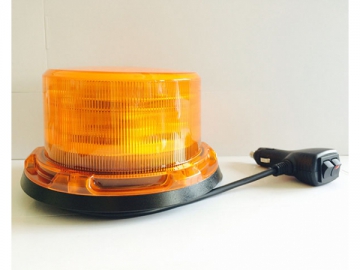

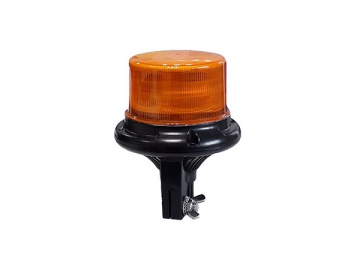

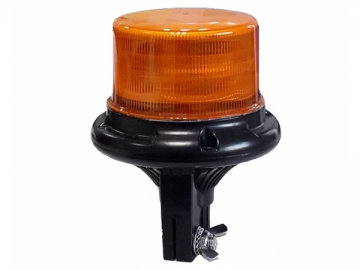

BL100-A-DIN
BL100-A-DIN

Specification:
Operating Voltage: DC9~33V
Light source: 12*3W high power LEDs
Light color: amber, blue, red light or other customized light
360° strobe, built-in flasher with 9 flash light patterns (optional), PC programmable control
Comply with ECE R65 requirements, including standard quad flash, double flash, also with a simulative rotating pattern:180-r/min; or other customized flasher
Compliance with ECE R10.04 for EMC
Optional flash light pattern, by using the White wire to touch the Black wire“-”
Multiple LED warning beacons may be connected to provide synchronous or alternate flash patterns
Reverse polarity protection
UV resistant PC outer lens and base
Aluminum alloy die-cast bottom with powder coated finish and stainless steel hardware
IP67 protection grade
Fixation: permanent mounting, magnetic base with Cig plug adapter and single pole plug meeting DIN72591(ISO 4165) standard

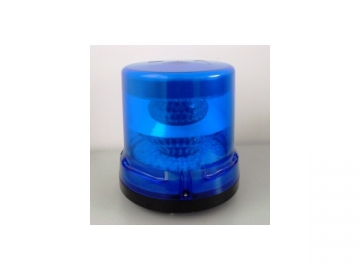

BL100-BL
BL100-BL

Specification:
Operating Voltage: DC9~33V
Light source: 12*3W high power LEDs
Light color: amber, blue, red light or other customized light
360° strobe, built-in flasher with 9 flash light patterns (optional), PC programmable control
Comply with ECE R65 requirements, including standard quad flash, double flash, also with a simulative rotating pattern:180-r/min; or other customized flasher
Compliance with ECE R10.04 for EMC
Optional flash light pattern, by using the White wire to touch the Black wire“-”
Multiple LED warning beacons may be connected to provide synchronous or alternate flash patterns
Reverse polarity protection
UV resistant PC outer lens and base
Aluminum alloy die-cast bottom with powder coated finish and stainless steel hardware
IP67 protection grade
Fixation: permanent mounting, magnetic base with Cig plug adapter and single pole plug meeting DIN72591(ISO 4165) standard

BL100-R
BL100-R

Specification:
Operating Voltage: DC9~33V
Light source: 12*3W high power LEDs
Light color: amber, blue, red light or other customized light
360° strobe, built-in flasher with 9 flash light patterns (optional), PC programmable control
Comply with ECE R65 requirements, including standard quad flash, double flash, also with a simulative rotating pattern:180-r/min; or other customized flasher
Compliance with ECE R10.04 for EMC
Optional flash light pattern, by using the White wire to touch the Black wire“-”
Multiple LED warning beacons may be connected to provide synchronous or alternate flash patterns
Reverse polarity protection
UV resistant PC outer lens and base
Aluminum alloy die-cast bottom with powder coated finish and stainless steel hardware
IP67 protection grade
Fixation: permanent mounting, magnetic base with Cig plug adapter and single pole plug meeting DIN72591(ISO 4165) standard

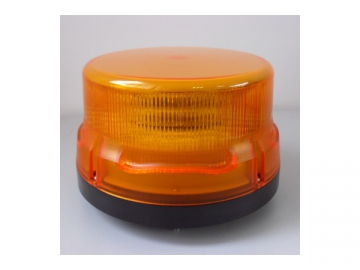

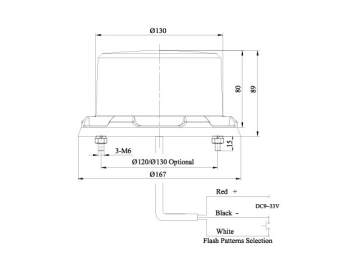

LB130-A
LB130-A

    Specification:
    Operating voltage: DC9~33V
    Operating temperature: -40℃~ 65℃
    Light source: high efficiency LEDs; amber, blue, red or other customized color
    Lens material: UV resistant lens
    Lens color: clear, amber, blue, red
    Housing: aluminium alloy die casting housing with powder coated finish
    IP 67 with reverse polarity protection
    Photometric performance: comply with ECE R65 CLASS1 and SAE J845 requirements
    E-mark approved
    Optional flashing patterns: 360°stroble, built-in flasher with 8 flash light patterns, including standard quad flash and double flash
    Mounting type: fixed mounting via screws or with magnetic base (optional) or DIN mount

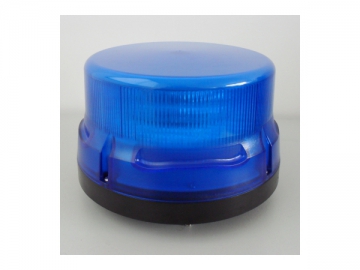

    LB130-BL
    LB130-BL

    Specification:
    Operating voltage: DC9~33V
    Operating temperature: -40℃~ 65℃
    Light source: high efficiency LEDs; amber, blue, red or other customized color
    Lens material: UV resistant lens
    Lens color: clear, amber, blue, red
    Housing: aluminium alloy die casting housing with powder coated finish
    IP 67 with reverse polarity protection
    Photometric performance: comply with ECE R65 CLASS1 and SAE J845 requirements
    E-mark approved
    Optional flashing patterns: 360°stroble, built-in flasher with 8 flash light patterns, including standard quad flash and double flash
    Mounting type: fixed mounting via screws or with magnetic base (optional) or DIN mount

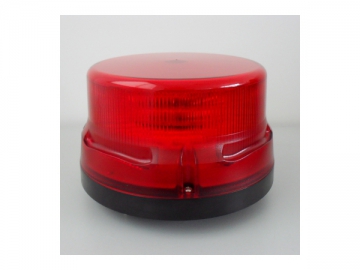

    LB130-R
    LB130-R

    Specification:
    Operating voltage: DC9~33V
    Operating temperature: -40℃~ 65℃
    Light source: high efficiency LEDs; amber, blue, red or other customized color
    Lens material: UV resistant lens
    Lens color: clear, amber, blue, red
    Housing: aluminium alloy die casting housing with powder coated finish
    IP 67 with reverse polarity protection
    Photometric performance: comply with ECE R65 CLASS1 and SAE J845 requirements
    E-mark approved
    Optional flashing patterns: 360°stroble, built-in flasher with 8 flash light patterns, including standard quad flash and double flash
    Mounting type: fixed mounting via screws or with magnetic base (optional) or DIN mount

    LB130-W
    LB130-W

      Specification:
      Operating voltage: DC9~33V
      Operating temperature: -40℃~ 65℃
      Light source: high efficiency LEDs; amber, blue, red or other customized color
      Lens material: UV resistant lens
      Lens color: clear, amber, blue, red
      Housing: aluminium alloy die casting housing with powder coated finish
      IP 67 with reverse polarity protection
      Photometric performance: comply with ECE R65 CLASS1 and SAE J845 requirements
      E-mark approved
      Optional flashing patterns: 360°stroble, built-in flasher with 8 flash light patterns, including standard quad flash and double flash
      Mounting type: fixed mounting via screws or with magnetic base (optional) or DIN mount

      155-I
      155-I

        Specification:
        Operating Voltage:DC9~33V
        Light source:12*3W high power LEDs
        Light color:comply with ECE R65 requirements,amber, blue, red light or other customized light 360°strobe, Built-in Flasher with 9 Flash light patterns(optional), PC programmable control, comply with ECE R65 requirements ,including standard quad flash,double flash, also with a simulative rotating pattern:180-r/min; or other customized flasher Compliance with ECE R10.04 for EMC Option Flash light pattern, by using the White wire to touch the Black wire"-" Multiple beacons may be connected to provide synchronous or alternate flash patterns. Reverse polarity protection
        UV resistant of PC outer lens and Base
        Aluminum alloy die-cast bottom, with powder coated finished, stainless steel hardwareIP67 Rated ;
        Fixed: permanent mount, magnetic base with Cig plug adapter and single pole plug to spec. DIN72591 (ISO 4165)

        155-II
        155-II

          Specification:
          Operating Voltage:DC9~33V
          Light source:12*3W high power LEDs
          Light color:comply with ECE R65 requirements,amber, blue, red light or other customized light 360°strobe, Built-in Flasher with 9 Flash light patterns(optional), PC programmable control, comply with ECE R65 requirements ,including standard quad flash,double flash, also with a simulative rotating pattern:180-r/min; or other customized flasher Compliance with ECE R10.04 for EMC Option Flash light pattern, by using the White wire to touch the Black wire"-" Multiple beacons may be connected to provide synchronous or alternate flash patterns. Reverse polarity protection
          UV resistant of PC outer lens and Base
          Aluminum alloy die-cast bottom, with powder coated finished, stainless steel hardwareIP67 Rated ;
          Fixed: permanent mount, magnetic base with Cig plug adapter and single pole plug to spec. DIN72591 (ISO 4165)

          Applications:
          The LED warning beacon is most often found on emergency vehicles, boats, road safety signs, navigation lanterns and obstacle lights on buildings.
