MG2811 Push Pull Mortise Lock Manufacturer

MG2811 Push Pull Mortise Lock

: http://mortiselockfactory.com/2-1-mg2811-push-pull-mortise-lock.html

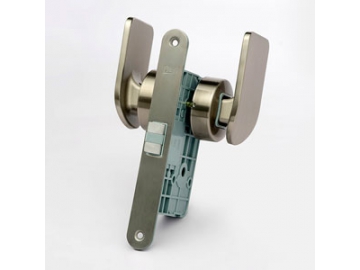

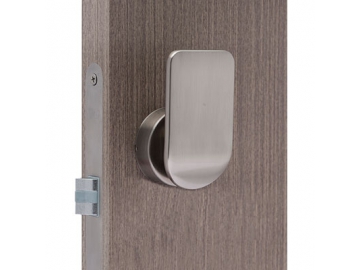

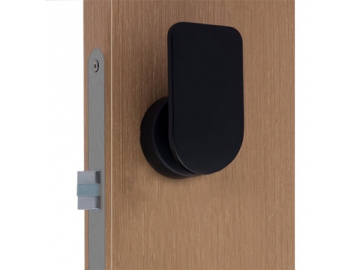

Features

This type of push-pull mortise lock is designed without locking. It is used on doors where locking is prohibited or not required. The shell material of the lock body is POM and the bolt is made of plastic POM and zinc alloy to ensure the safety and less noise. The surface treatment adopts Japanese advanced technology. Various tests are carried out in accordance with Japanese JIS standards to ensure the durability of the lock both from the appearance and structure.

Dimensions

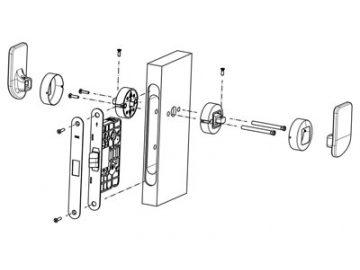

Parts List

No	Name	No	Name
1	Inner Lever Handle	7	Outer Panel for Lever Handle
2	Inner Panel for Lever Handle	8	Outer Lever Handle
3	Screw for Lever Handle	9	Connecting Screw Bolt
4	Inner Holder for Lever Handle	10	Plate for Lock Body
5	Lock Body	11	Screw for Lock Body
6	Outer Holder for Lever Handle	12	Striking Box

Installation Instructions

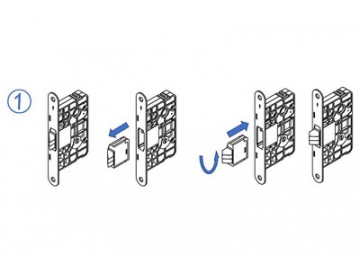

Determine the direction of door opening. Put the lock body (arrow upwards) into the set hole and make sure the inclined surface of the latch bolt is facing the direction of door closing (If the direction of inclined surface is wrong， pull the latch bolt out of lock body and rotate it by 180°. Then insert it back into the lock body), Install the front plate and tighten the screws.

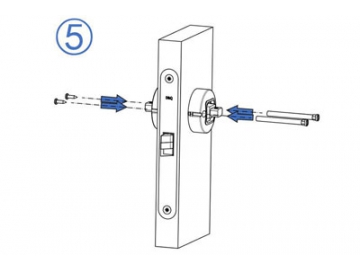

Inward opening door: push from the outside and pull from the inside. After installing the push -pull escutcheon panels, install lever handles (fixed screws hole upwards) and then tighten screws.
Outward opening door: push from the inside and pull from the outside. After installing the push -pull escutcheon panels, install lever handles (fixed screws hole upwards) and then tighten screws.
(Notice when installing push - pull escutcheon panels :make sure the push arrow on push plates is pointing upwards and the pull arrow on pull plates is upwards.)

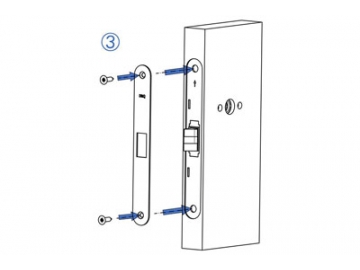

Install the striking plate on the corresponding position of the door frame and make sure that latch bolt and dead bolt can move in and out freely
Test after installation:Push and pull the lever handles, press the latch bolt to the inclined surface direction of the latch bolt. If the latch bolt can work flexibly, the installation is completed. If not, please reset all components.
