Model: PBMWS-12A

Technical Parameters
  • Pipe Diameter: DN50-300(φ60-325mm)
  • Pipe Thickness: 3-12M
  • Pipe Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
  • Cutting Length: 8000MM
  • Type of Bevel: V
  • Max. Hoisting Weight: 1 ton
  • Control System: PLC control with touch screen (Human-machine interface)
  • Conveying System: Logistics conveyer system for cutting and beveling equipment with motor drive and frequency converter speed control
  • Length-Measuring System: Control system of definite length measuring cutting for pipes combined with conveyer system (option)

Applications
The pipe cutting and beveling workstation is used for edge preparation of standard thickness pipes.

Features

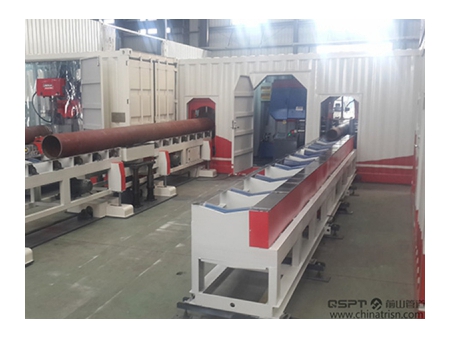

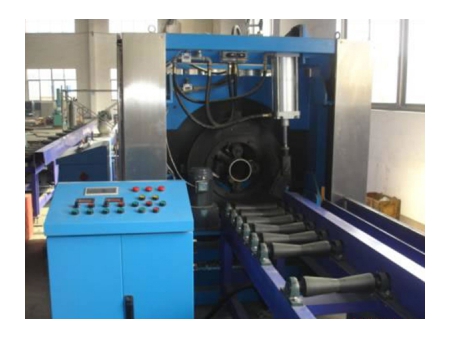

  • The basic configuration of the pipe cutting and beveling workstation consists of one 6m container with special retrofit, one set of fixed-type high speed pipe cutting and beveling machine, one set of conveyer system for cutting and beveling machine, one set of mechanical cutting length-measuring system (option), and two sets of cantilever cranes(option).
  • The production capacity of the pipe cutting and beveling workstation is ≤5Min /two bevels (DN200 SCH40).

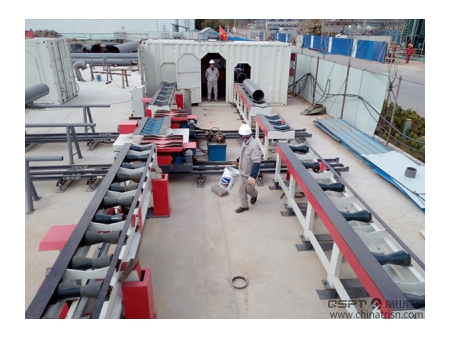

  • It offers excellent mobility (without limitation of radiation radius by using container as carrier).
  • The bevels quality is excellent.
