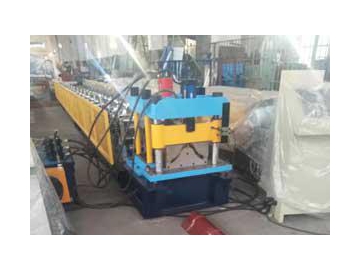

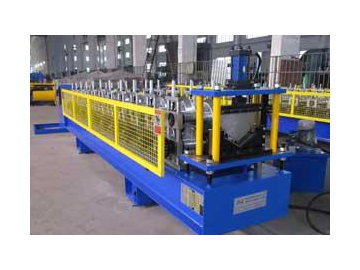

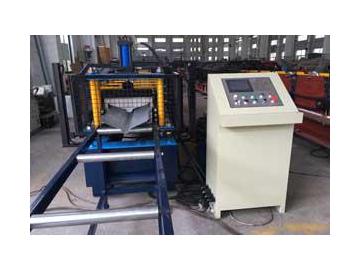

Roll Forming Line for Ridge Cap

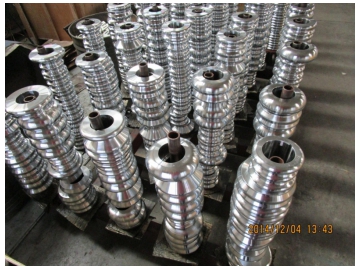

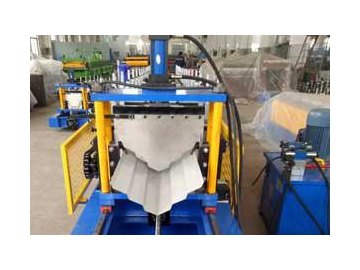

JSR Machinery offers high-performance roll forming machine that produce metal roof ridge cap. The ridge cap is roll formed by high precision rollers that are able to forming 0.4 to 0.6mm thick steel sheets at full speed up to 20m/min.
JSR Machinery is confident in tailoring ridge cap roll former for you, to meet your demands in profiles, raw materials and other.
Specifications| Machine Specifications | |
| Weight | About 5000kgs |
| Size | About 8m × 1.2m × 1.5m (length × width × height) |
| Suitable Raw Material | |
| Material | Pre-painted galvanized steel coils |
| Thickness | 0.4-0.6mm |
| Yield strength | 235MPa |
| Main Technical Parameters | |

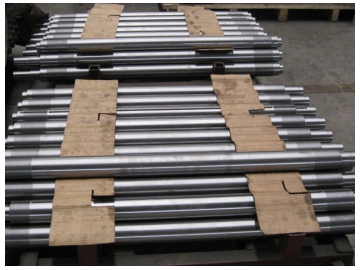

| Diameter of roll shafts | 65mm |
| Production speed | 20m/min |
| Roller material | No.45 steel, coated with chrome plating treatment |
| Cutter material | CR12 mold steel, with quenching heat treatment |

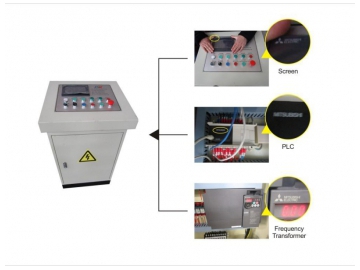

| Control system | PLC and converter |
| Electric power requirement | Main motor power: 3kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer's requirement |

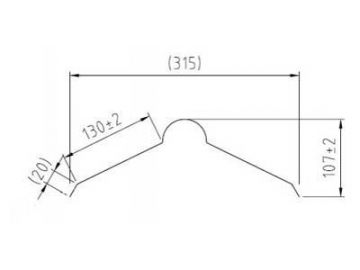

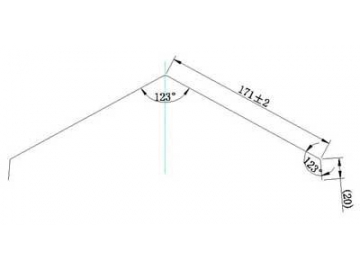

2 standard roof ridge cap profiles are available and we can make custom profiles according to your requirements on profile, raw material, width range and other aspects.
