U-pipe Solar Collector
Product introduction

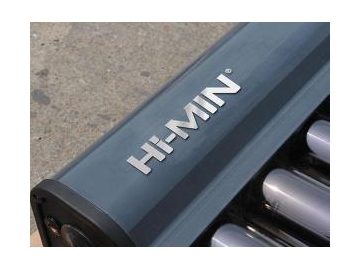

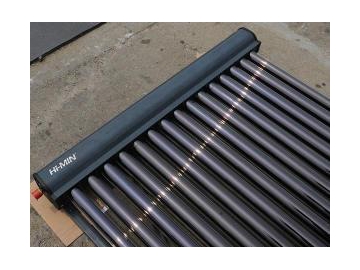

The Himin HUJ1 U pipe collector includes a heater, vacuum tubes, U frame, mounting frames and a tube bottom rack. It is typically used to collect heat for space heating or domestic hot water. The collector can be installed individually, or connected to a hot water system. The HUJ1 U pipe solar collector is one of 2015’s new products.
Features
1. This pipe collector uses a vacuum tube and heat transfer method through u pipes to redce heat loss and ensure a higher collector temperature.
2. There is no water inside the vacuum tubes, therefore there is no contamination and no breaks. U pipe technology is used, so that temperatures rise quickly, making the U pipe solar collector efficient and reliable.
3. There are no restrictions on the installation height, and there are different pressure options and a large water flow to make your bathing experience comfortable and pleasant.
4. The optimal design of the collector makes it less visually obvious, and ensures it is more compatible with existing architectural designs.
Product Structure

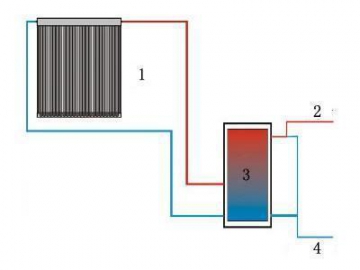

1.Collector; 2.Hot water 3.Cold water; 4.Water Tank

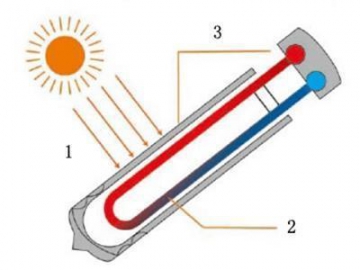

1.Sunlight; 2.Vacuum tube; 3.U pipe
Working Principle
The sunlight shines on the outer wall of the vacuum tube and is absorbed by the all glass tube. The light is then converted to heat energy which is then transferred to the U pipe via fan, which aims to heat the heat transmission medium that exists in the U pipe. Finally, the heat energy is conveyed to the water in the water tank.
The parameter of vacuum tube
| Length(mm) | 2100 |
| Structure (mm) | double glass tubes |
| Outer Diameter of outer tube(mm) | 58 |
| Thickness of outer tube(mm) | 1.8 |
| Inner Diameter of inner tube(mm) | 47 |
| Thickness of inner tube(mm) | 1.6 |
| Material | high borosilicate glass 3.3 |
| Solar transmission rate | ≥0.92 |
| Selective coating type | AIN/AIN-SS/Cu |
| Absorptance ratio | ≥0.94 |
| Vacuum degree(Pa) | ＜5.0×10-4 |
| Maximum temperature(℃) | 250～320 |
| Heat Loss (W/㎡·℃) | ≤0.5 |
| Rated Pressure (Mpa) | 0.6 |
| Specification of collector | HUJ1-15/2.1 | HUJ1-20/2.1 |
| Specification of vacuum tube | Φ58×2100×14 | Φ58×2100×20 |
| No. of vacuum tube | 15 | 20 |
| Weight empty | 67kg | 88.19kg |
| Outline dimension(mm) | 2240×1254×155 | 2240×1614×155 |
| Capacity of collector | 2.59L | 3.99L |
| Flow L/(min·㎡) | 0.6～1.2 | 0.6～1.2 |
| Collector type | copper U pipe | copper U pipe |
| Insulation material | PU | PU |
| Working medium | Propylene glycol or water | Propylene glycol or water |
| Rated Pressure | 0.6MPa | 0.6Mpa |
| Total area | 2.53m2 | 3.33m2 |
| Aperture area | 1.77m2 | 2.37m2 |
| Absorber area | 1.44m2 | 1.92m2 |
| Shell material | aluminum | aluminum |
| Frame material | galvanized steel plate | galvanized steel plate |
| Tailstock material | Nylon | Nylon |
| Collector interface | 3/4" coupling nut | 3/4" coupling nut |
| Maximum working temperature | 240℃ | 240℃ |
