Linear Module, Series KTH6
Specification:
PDF down Product Detail - Rail width: 60mm
- Optional travel: 50mm-800mm
- Max load of single slider: 30KG
- Applicable motor: servo 100/200/400W
- Repeat accuracy: ≤0.02mm
- Screw travel: 10mm
- Adopting modular design, Series KTH6 linear module can help the engineers of automation machinery and electronic control to construct multi-axis working device. The effective travel of linear module can be customized according to customers’ requirements.

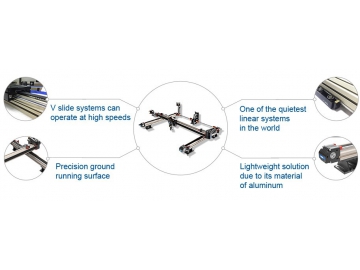

- This linear module is a lightweight solution due to its material of aluminum. It is featuring lightweight, small inertia and fast response of speed change. Besides that, it can match with stepping, servo and other motors.
- This linear equipment is mute while working in a high speed because of its closed self-lubricating system that can reduce the rolling friction coefficient by forming oil film on the guide rod.
- The design of these series linear modules is careful and precision. The rail and beam are integrated for easy installation. The mounting hole on the sides and bottom can help the fixation of drag chains, sensors and fixing bases as well as connecting plates and other accessories. The clearance of sliding block and guide rail can reach zero. Moreover, the linear module is equipped with tension adjustment device of synchronous belt.
- This dust-proof linear guide adopt the design of closed steel belt, which make this linear guide can be used in high dust environment.
