Alloy Steel Eye Nut

: http://shenli-rigging.com/2-12-alloy-steel-eye-nut.html

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Surface treatment: Powder plastified.
● Color code: red RAL3020/yellow RAL1003.
● Ultimate load is 4 times the Working Load Limit.

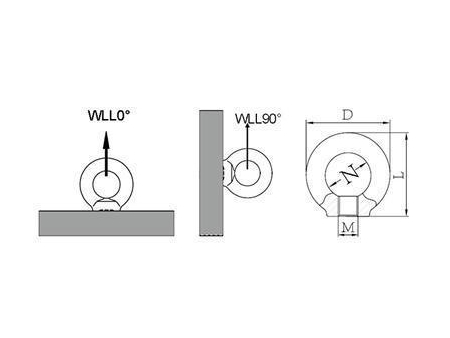

Parameters (Unit: mm)

Item Code	Weight (kg)	Woring Load Limit (t) (4:1)		D±1	N±0.6	L±0.5
Item Code	Weight (kg)	WLL 0°	WLL 90°	D±1	N±0.6	L±0.5
8-SLR055-M6	0.049	0.4	0.15	36	20	36
8-SLR055-M8	0.05	1	0.4	36	20	36
8-SLR0545-M10	0.09	1	0.4	45	25	45
8-SLR055-M12	0.16	2	0.75	54	30	53
8-SLR055-M16	0.24	4	1.5	63	35	62
8-SLR055-M20	0.36	6	2.3	63	35	62
8-SLR055-M24	0.72	8	3.2	72	40	71
8-SLR055-M30	1.32	12	4.5	72	40	71
8-SLR055-M36	2.08	16	7	81	45	81
8-SLR055-M42	3.11	24	9	90	50	90
8-SLR055-M48	5.02	32	12	90	50	90
