Alloy Steel Forged Hook

Alloy Steel Forged Hook
Alloy Steel Forged Hook
Request a Quote

It is cut by steel plate.
Ultimate load is 4 times the Working Load Limit.

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

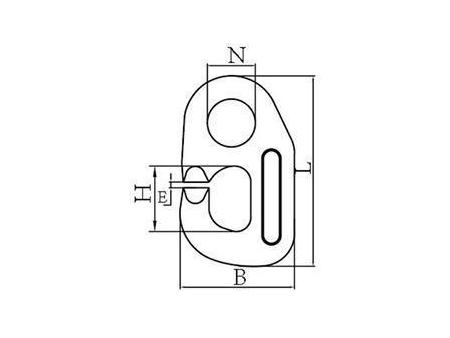

Parameters (Unit: mm)
Item Code Weight (kg) Working Load Limit/t Breaking Load/t N±1 B±1.5 E±0.1 H±1 L±1.2
8-SLR087-1.5T 0.5 1.5 7.5 28 61 3 35 102
8-SLR087-3.0T 0.73 3 15 30 72 3 41 119
8-SLR087-5.0T 1.2 5 25 35 84.5 3 42 137
8-SLR087-8.0T 1.6 8 40 42 96 3 42 153
