Alloy Steel Eye Sling Hook Manufacturer

Alloy Steel Eye Sling Hook

: http://shenli-rigging.com/2-16-alloy-steel-eye-sling-hook.html

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Each workpiece is equipped with cast safety latch.
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

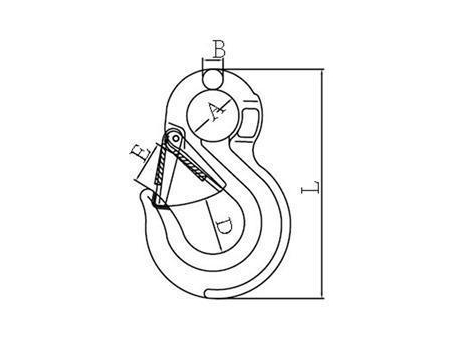

Parameters (Unit: mm)

Item Code	Weight (kg)	Woring Load Limit (t)	Breaking Load (t)	B±1	E±1	D±1	A±1	L±2
8-SLR013-06	0.3	1.12	4.48	9	24	21	20	108
8-SLR013-7/8	0.4	2.0	8.0	11	30	26	25	133
8-SLR013-10	0.9	3.15	12.6	15	34	39	38	167
8-SLR013-13	1.7	5.3	21.2	19	39	54	43	213
8-SLR013-16	3.2	8	32	23	46	64	50	255
8-SLR013-20	5.8	12.5	50	24	48	80.4	63	305
8-SLR013-22	8.5	15	60	32	71	100	62	348
8-SLR013-26	13	21.2	84.8	35	81	82	64	394
8-SLR013-32	17	31.5	126	37	102	112	88	480

Parameters (Unit: mm)

Item Code	Size	Item Code	Size
SP-SLR013-6	6-8	SP-SLR074-20	20-8
SP-SLR013-7/8	7/8-8	SP-SLR074-22	22-8
SP-SLR013-10	10-8	SP-SLR074-26	26-8
SP-SLR013-13	13-8	SP-SLR074-32	32-8
SP-SLR013-16	16-8
