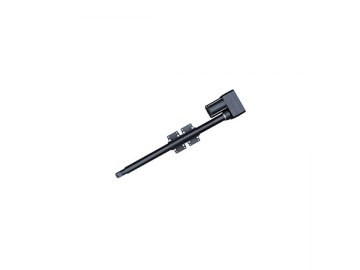

Linear Actuators U12 is designed specially for livestock farming industry, which couldbe adapted to 120V or 230V AC. IP65 waterproof level, 500kg loadcapacity and adjustable installation length are its advantages.

Parameters

Voltage: 12/24/36/48V DC
Voltage: 24/36/48 VDC / 120/230 VAC, 50Hz
Load: 5,000 N (Push／Pull)
No-load velocity: 4.5 mm/s
Full-load velocity: 4mm/s
Waterproof class: IP65
Standard Motor (1700RPM)

Features

The linear actuator features a large maximum load capacity, high speed, and high positioning accuracy.
Its shell features an excellent corrosion resistance and requires no maintenance.
This product is waterproof, dustproof, and features an excellent resistance to salt spray, making it ideal for harsh environments.
It uses a metal gearbox and features a long service life.
It is designed with a strong and durable structure.
The installation dimensions are freely adjustable.
It can be equipped with a 1K/10K potentiometer.

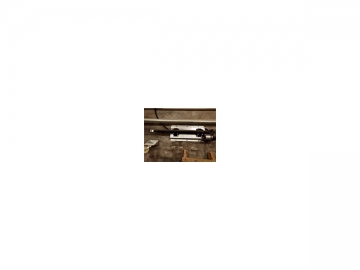

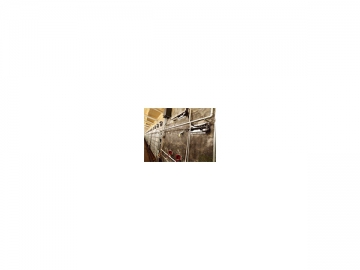

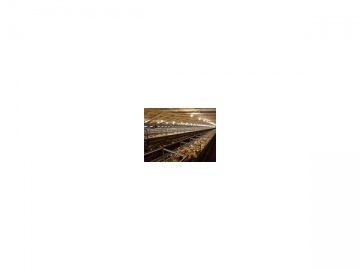

This linear actuator is designed for ventilation systems in agriculture and animal husbandry industries.

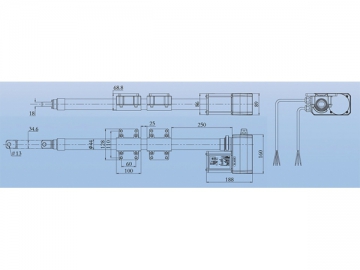

Appearance and size

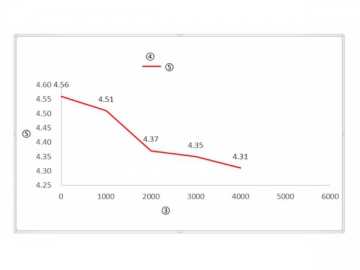

Curve graph

① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)

Customization parameter

1=24V
2=36V
3=48V
4=120V
5=230V
1=Black（Standard）
2=Blue

1=Tinned leads（Standard）
3=Switch connector
1=1.2M C=Customization
