5-Axis Kinematic Mounts
The 5-axis kinematic mounts provide linear and angular displacement in multiple directions. Closely pitched screw thread is used, the maximum travel range of linear displacement is 5mm. Extra precision linear tuning adjustment construction is added in θy，θz direction. The minimal resolution is 0.00001°.
- 2-dimensional extra precision linear tuning adjustment construction is added in Ty，Tz direction. The minimal resolution is 0.01μm.
- Extra precision linear tuning adjustment construction is added in θy，θz direction. The minimal resolution is 0.00001°. Fine tuning, stable construction, good repeatability.
- M4x0.3 closely pitched screw thread is used to do adjustment.
- The maximum travel range of linear displacement is 5mm.
- Equipped with locking knob.
| Model | WN51KM10 |
| Clamping mode | Screw thread clamping ring |

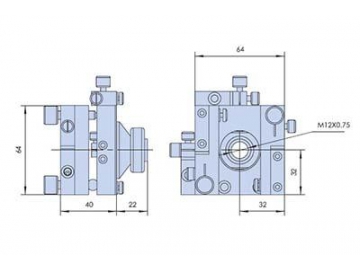

| Mounting hole diameter | M12x0.75 |
| Tx | 6mm |
| Ty | ±2.5mm |
| Tz | ±2.5mm |
| θy | ±4° |
| θz | ±4° |
| Weight | 0.6kg |
