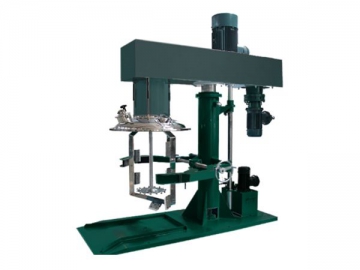

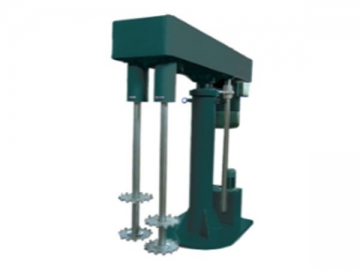

RTJB series high viscosity mixer is powerful in dispersing and mixing, especially suitable for handling materials with medium/high viscosity or thixotropy. Multiple types of mixing agitators are available, including anchor, butterfly, frame, etc. Dispersing and mixing processes can be proceeded at the same time, providing extra efficiency. Non-standard configurations are available according to customer’s special requirements in materials, processes, etc.

Features
  • Speed control via frequency transformer.
  • Stable hydraulic lifting system.
  • Wall scraping function to prevent material from sticking at mixing chamber walls.
  • Multiple workheads available, you can choose the proper one according to certain situation to achieve optimal mixing and dispensing efficiency.
  • Non-standard models available for customization, such as explosion-proof type, vacuum type, heating type, etc.
Applications

Applied in fine chemical engineering industries such as adhesive, new material, ink, dye, etc., to perform mixing and dispersing works on paint, putty, ink, adhesive, lithium battery paste, glue, etc.

Specifications
Model Power (KW) Mixing Capacity (L)
RTJB-TZ500
2.2 200-500
RTJB-TZ1000
4 400-1000
RTJB-TZ2000
5.5 800-2000
RTJB-TZ3000
7.5 1200-3000
