Integrated Surface DTH Drilling Rig, KT25
Down-the-hole drill rig for open-pit mining

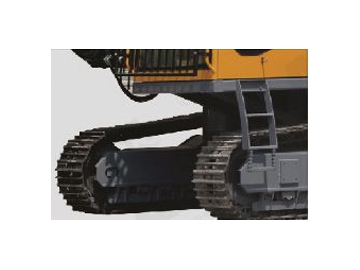

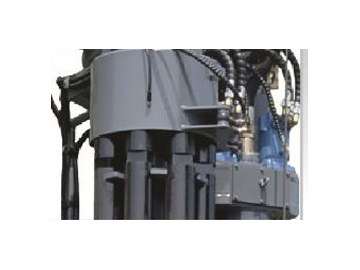

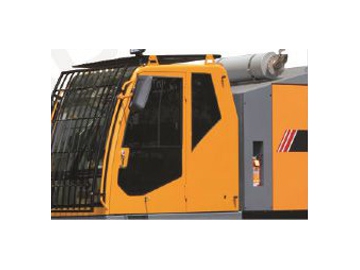

This machine is a marvelous creation that is produced based on efforts devoted by Zhejiang Kaishan Compressor. It is especially suitable for operators working in large-scale open-pit mines. The drilling machine is driven by a powerful engine that activates the interior hydraulic movement system, high-pressure air end and DHT hammer, through which it can drill rocks efficiently, change angles and move smoothly. The machine is equipped with several advanced modules, such as a hydraulic dust collector that can reduce harm to environment, a hands-free hydraulic rod handling module, a floating rig joint protecting rod thread and an anti-jamming module. With these features, the machine can be operated by one person. It also provides a cozy working environment for operators, with an air-conditioner installed in its large cab.
| Model | |
| Dimensions during transportation | 12200×2840 ×3620mm |
| Total weight | 25800kg |
| Rock hardness | F=6-20 |
| Hole diameter | ⌀152-203mm |
| Drilling depth | 35m |
| Ground clearance | 430mm |
| Tramming speed | 3km/h |
| Gradeability | 25° |
| Total power | 328kW |
| Diesel engine | Caterpillar C13 |
| Free air delivery of compressor | 26m³/min |
| Discharge pressure of compressor | 350 psi |
| Rotation speed | 0-118r/min |
| Maxium torque | 6.1kN.m |
| Maximum push force | 65kN |
| Tilt angle | 125° |
| Swing angle | Left: 33°, right: 97° |
| Boom swing angle | Left: 15°, right: 42° |
| Frame oscillation angle | Up: 10°, down: 10° |
| Feed extension | 1800mm |
| DTH hammer | K5, K6 |
| Rod diameter | ⌀102×5000/Ø127×5000mm |
| Dust collector | Dry (hydraulic cyclonic laminar flow) |
| Rod handling | Hands-free rod handling |
| Anti-Jamming | Electro-hydraulic control anti-sticking |
| Rod lubrication | Automatic lubrication |
| Rod thread protection | Floating clamp is equipped for protection |
| Drilling process display | Real-time display of drilling angle and depth |
