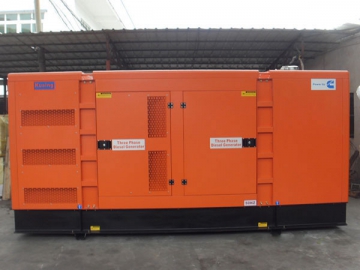

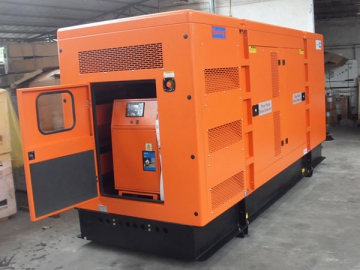

Cummins Diesel Generator, CK34500
Technical Parameters
| Model | CK34500 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 618.8 | 687.5 |
| KW | 495.0 | 550.0 | |
| Rated Power | KVA | 562.5 | 625.0 |
| KW | 450.0 | 500.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 812 | 902 |
| Fuel Consumption | G/KW.H | ≤202 | |
| Generator Controller | Auto Multi-function | ||
| Engine Model. | KTAA19-G5 | ||
| Alternator Model. | TCU368B | ||
| Clinder No. | 6/L | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size (MM) | Silent Type | 5030*1860*2550 | |
| Open Type | 3650*1500*2050 | ||
| Optional | ATS (auto transfer switch) | ||
