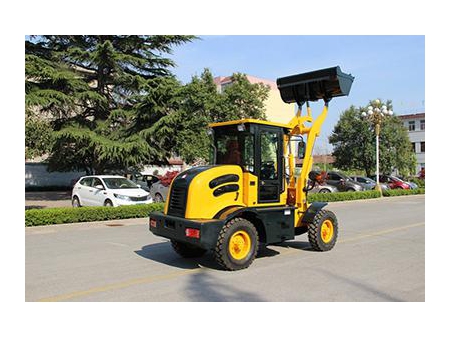

1000kg Wheel Loader
Recommended application
The loading weight of the ZL-10A four wheel drive loader is 1000kg, with a bucket capacity of 0.5m3. The engine is Changchai brand four cylinder diesel engine that has low fuel consumption and powerful function, cooperated with full hydraulic operation design, greatly improving the loader’s working efficiency. Accordingly, it can be widely used in the construction of agricultural engineering as well as of medium and small buildings, such as highways, mines, brick tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories.
The bucket is designed with a convenient tailgate, which can prevent the materials from falling during work. If different jobs requirements need to be satisfied, a fast connector can also be chosen to replace various loader mount attachments to carry out jobs of different functions, such as snow bucket, fork.

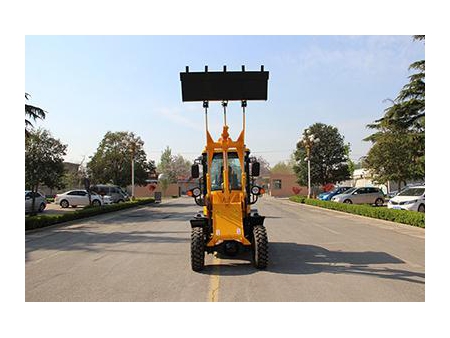

- Front bucket
- Front bucket
| Rated loading weight | 1000kg |
| Rated bucket capacity | 0.5m3 |
| Rated power/Rated speed | 20KW/2200rpm |
| Bucket width | 1500mm |
| Track base | 1215mm |
| Wheel base | 1985mm |
| Min. turning radius(outside of rear wheels) | 4200mm |
| Min. Ground clearance | 250mm |
| Dump height fully raised | 2300mm |
| Reach fully raised | 850mm |
| Lifting time | 4s |
| Hydraulic cycle time | 8s |
| Max. Tilt angle | 30° |
| Max. Bucket breakout, lift cylinder | 22KN |
| Operating weight | 2850kg |
| Overall dimensions(LxWxH) | 4750x1500x2530mm |
| Engine model | CHANGCHAI 385 |
| Engine type | In-line arrangement, water cooled, three-stroke diesel engine |
| Engine starting mode | Electric |
| Driving mode | Four-wheel drive |
| Brake mode | Four-wheel hydraulic spread-shoed brake |
| Warranty | 12 months after received the goods |
| Color | According to the requirements of customers |
| Tyre type | 8.25-16 |
| Shipping port | Qingdao port, China |
| Packing details | Nude package, 1Unit/20's GP with disassembled cabin, 3Units/40's HQ |
| Delivery time | 20 days after confirm the order |
| Supply ability | 100 units per month |

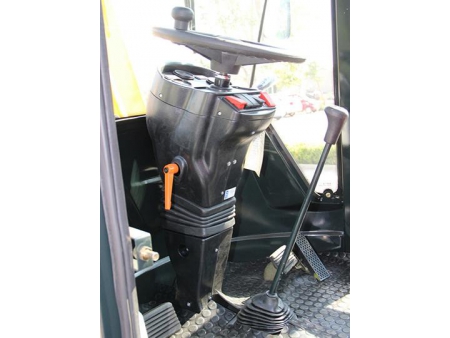

- Cab

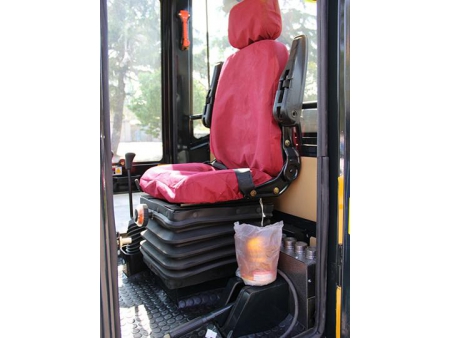

- Seat
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
