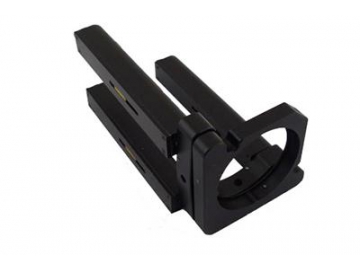

WN01EM100 Motorized Mirror Mounts
WN01EM100 motorized mirror mounts are adjusted with fine threaded screw drive, equipped with stepper motor and RS232 interface. Lens is protected by polytetrafluoroethylene.
Different diameters of one way mirrors, lens and mirrors can be mounted. It can be used for reflecting light, splitting light and mixing colors. It is mostly applied in laser processing and automatic measuring.
- The motorized mirror mount is equipped with stepper motor.
- Good stability with high strength spring reset device installed at many places.
- Micro moving are designed with notch.
- Lens is protected by polytetrafluoroethylene.
| Model | WN01EM100 |
| Tilt angle about two axes | ±5° |
| Function | θx,θy two-dimensional pitching adjustment |
| Optics diameter | 100mm |
| Drive method | M6X0.25 two-axis fine threaded screw drive |
| Drive motor | Stepper motor |
| Material | Aluminum alloy |
| Surface treatment | Black anodizing |
