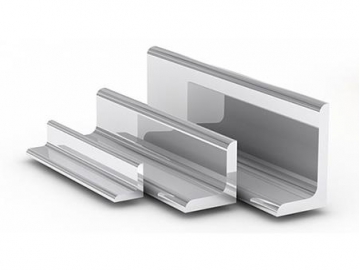

Extruded Aluminum Angles
Aluminum profiles cannot be deformed easily and have good heat conductivity as well as corrosion resistance. Sainty offers you with different dimensions of aluminum angle profile which can be widely used in construction, machinery, transportation, food, automotive and other industries.
We accumulated extensive experiences since 1995 to manufacture various aluminum profiles. We are capable to customize the extruded aluminum angles into various dimensions, materials and performances based on our customers' request. The commonly seen products are 6061 T6 aluminum angle and 6063 T5 aluminum angle.
Dimension ranges
Minimum dimensions：8mm×8mm×1mm
Maximum dimensions：280mm×40mm×4mm
Specifications
| A*B(mm) | Thickness(mm) | Weight/Meter |
| 20x20 | 1.5 | 0.158 |
| 25x25 | 1.5 | 0.199 |
| 30x30 | 2.0 | 0.317 |
| 50x50 | 2.5 | 0.663 |
| 40x40 | 3.0 | 0.635 |
| 30.1x20.1 | 2.0 | 0.262 |
| 30x15 | 3.0 | 0.381 |
| 38x25 | 1.7 | 0.559 |
| 76.2x25.4 | 3.18 | 10.388 |
| 152.4x101.6 | 9.53 | 75.786 |
