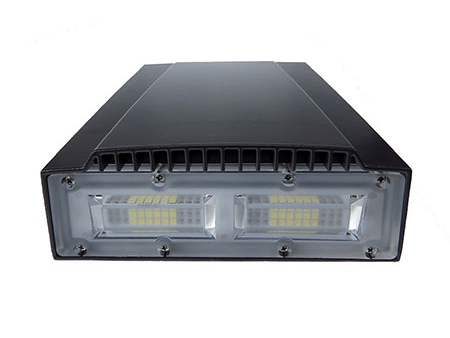

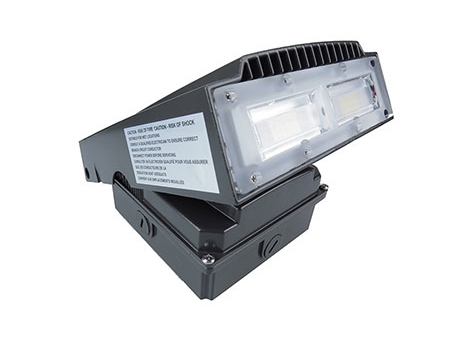

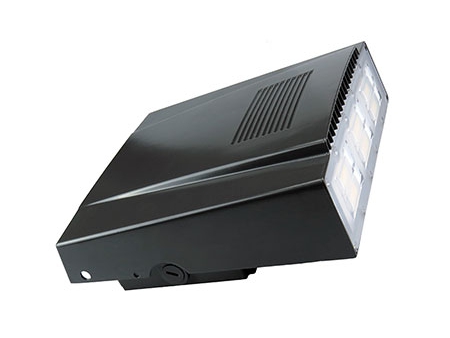

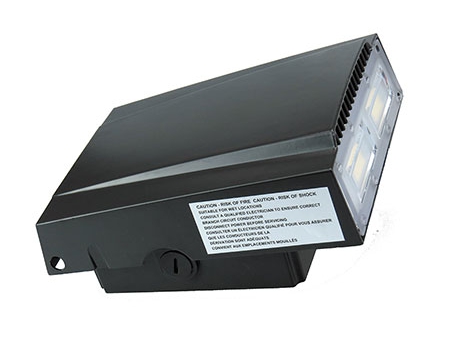

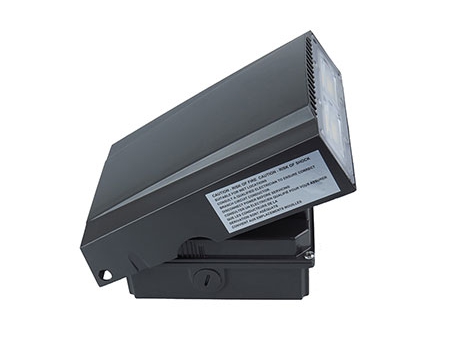

The LED wall pack light features a novel design and simple structure, ensuring easy daily maintenance, strong heat dissipation, high stability, and a long service life. It's designed with various functions and appearance styles. Thanks to excellent water resistance, the LED wall pack light is widely used in shopping malls, stations, etc.

Specifications
  • Item No.: MF31A-30, 50, 75
  • LED Type: Lumileds
  • LED Driver : CE Driver/LiFud
  • System Efficacy: 130lm/w
  • Input Voltage: 120-277V, 347-480V
  • System Power Consumption: 30W ~ 75W
  • Power Frequency: 50~60Hz
  • CCT: 2700K, 3000K, 4000K, 5000K
  • Output Voltage: 28.8~48VDC
  • Beam Angle: Symetric and Asymetric
  • CRI: Ra70/Ra80/Ra90
  • Power Efficiency: >90%
  • System Efficiency: >90%
  • Power Factor: >0.90
  • Fixture Material: Aluminum alloy PC
  • Painting: AkzoNobel powder coating
  • IP Rating: IP65
  • SPD: 10KV
Spec Download

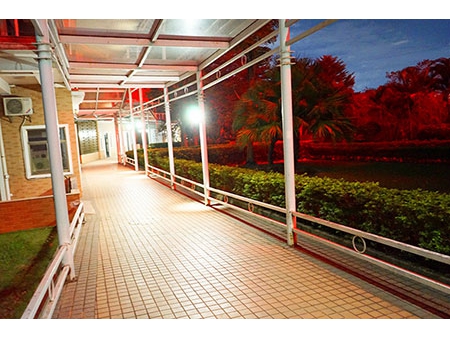

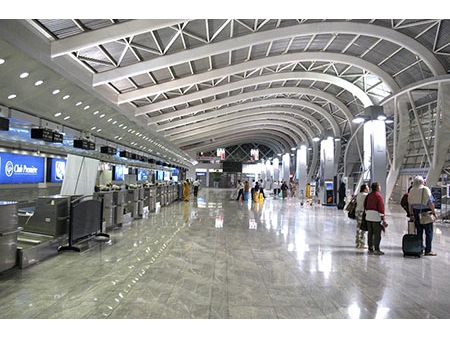

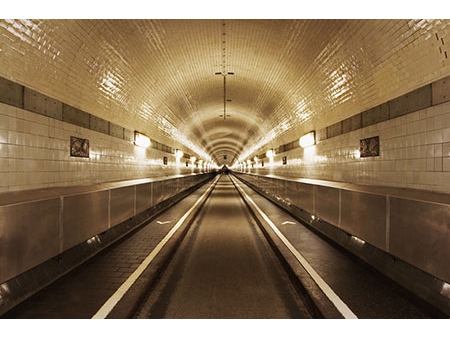

Applications

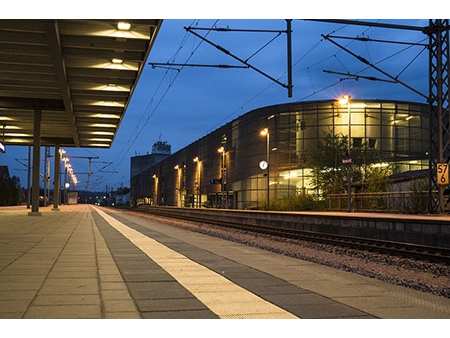

Station
