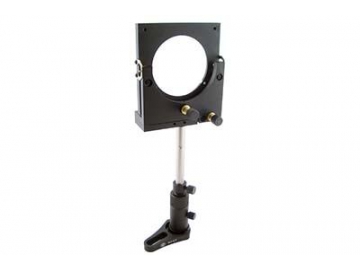

WN02WX(50-106) gimbal mirror mounts are equipped with M6x0.25 fine threaded screw, the adjustment range is ±5°. Lenses are protected by polytetrafluoroethylene. Two rotating axes are orthogonal and coplanar, which makes the optical path constant. Lens of different diameters can be mounted, the manual and electric adjustment is also provided.

Specification

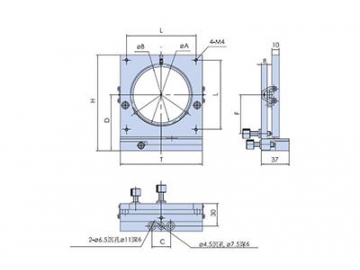

Model	WN02WX50	WN02WX80	WN02WX100	WN02WX102	WN02WX106
A	50 mm	80 mm	100 mm	102 mm	106 mm
B	48 mm	75 mm	95 mm	97 mm	107 mm
C		25 mm	25 mm	50 mm	50 mm
D	60 mm	75 mm	85 mm	86 mm	86 mm
L	57 mm	93 mm	113 mm	90 mm	84 mm
H	102 mm	128.5 mm	146.5 mm	151.5 mm	151.5 mm
T	84 mm	110 mm	130 mm	132 mm	132 mm
Adjustment range	±5°
Weight	0.25 kg

Features

Equipped with M6x0.25 fine threaded screw. (brass nuts are added)
High strength spring reset device; the reset force is adjustable from zero to rigidity.
Lenses are protected by polytetrafluoroethylene.
Two rotating axes are orthogonal and coplanar, which makes the optical path constant.
