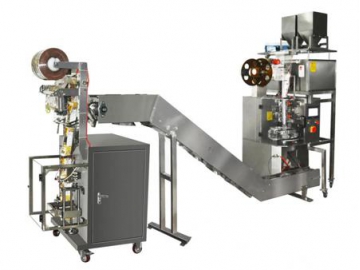

Granule Packing Machine, Vertical Form Fill Seal Machine
Granule Packing Machine, Vertical Form Fill Seal Machine, RZ-400/600/800/1050
Application of Granule Packing Machine, Vertical Form Fill Seal Machine
The granule packing machine is ideal for all kinds of granules, like washing powder, rice, seeds, sugar, fodder, sesame seeds, etc.
Main Features of Granule Packing Machine, Vertical Form Fill Seal Machine
1. RezPack granule packing machine provides low cost high gain, high speed and efficiency.
2. he vertical form fill seal (VFFS) machine comes with famous brand PLC control system and large touch screen, and thus is easy to operate.
3. The vertical packaging machine makes use of film drawing down system and horizontal sealing controlled by servo motor.
4. The granule packing machine minimizes the loss, by use of auto alarm design.
5. Equipped with feeding and measuring devices, the vertical form fill seal machine accomplishes feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery, in a continuous flow.
6. As to the way of bag making, the VFFS machine can make pillow type bags and standup bags as per customer needs.
| Model | RZ-400 | RZ-600 | RZ-800 | RZ-1050 |
| Capacity | Max. 40bags/min | Max. 60bags/min | Max. 50bags/min | Max. 30bags/min |
| Bag size | Width: 50-150mm | Width: 100-250mm | Width:100-300mm | Width: 300-500mm |
| Length: 80-200mm | Length: 80-350mm | Length:100-390mm | Length: 100-800mm | |
| Max. film width | Max. 320mm | Max. 520mm | Max. 620mm | Max. 1050mm |
| Film thickness | 0.04-0.09mm | 0.04-0.09mm | 0.04-0.09mm | 0.06-0.12mm |
| Power source | 2KW 220V 50HZ | 2.5KW 220V 50HZ | 4.0KW 220V 50HZ | 6KW 220V 50HZ |
| Air consumption | 0.8Mpa 0.25m3/min | 0.8Mpa 0.4m3/min | 0.8Mpa 0.6m3/min | 0.8Mpa 0.8m3/min |
| Dimension | L1110×W800×H1130 | L1500×W1140×H1540 | L1250×W1600×H1700 | L2250×W1800×H2400 |
| Weight | 300kg | 680kg | 800kg | 1000kg |
As an experienced Chinese granule packing machine manufacturer, RezPack is ISO9001 approved due to its management in line with international standards. In addition to the vertical form fill seal (VFFS) machine, or vertical packaging machine, there are also pre-made pouch packing machinery, pillow type packaging machine, tablet packing machine, candy packing machine, pickle packing production line, and more, available at RezPack. RezPack CE certified granule weighing filling production line, liquid and thick liquid fill seal production line, and powder filling sealing production line, etc. are increasingly used by customers from food, beverage, medicine, electronics industries, among others, because of their reliable performance, high efficiency and affordable prices. The staff also offers complete service, so customers can feel secure in purchasing RezPack packaging equipment.
