Paper Folder (2 Buckles and 2 Knives)

Paper Folder (2 Buckles and 2 Knives)
Request a Quote

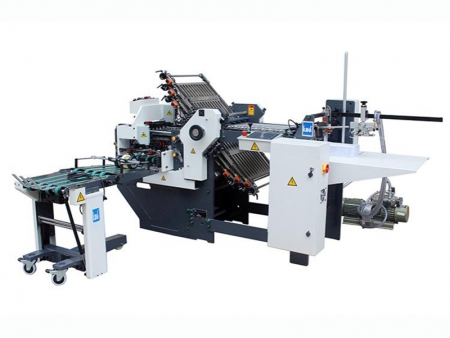

KMD’s 470T 2 paper folder is composed of two buckles and two electric control knives. Paper first passes through the two buckles in order to achieve double parallel folding, then achieves a 2 time cross folding through the use of an electric control knife. The folder carries out half folding, double parallel folding and more, making it especially suitable for magazine and newspaper folding.

Parameters
  • Max feeding sheet size (W*L): 470*750mm
  • Min feeding sheet size (W*L): 50*100mm
  • Sheet range: 40-157g
  • Max folding roller speed: 180m/min
  • Max. height of paper heap: 500mm
  • Machine power: 3kw
  • Machine netweight: 500kg
  • Overall dimension (L*W*H): 2850*1600*1415mm
  • Max folding knife stroke: 200times/min
