Buckle Folder (2 Buckles and 4 Buckles)

Buckle Folder (2 Buckles and 4 Buckles)
Request a Quote

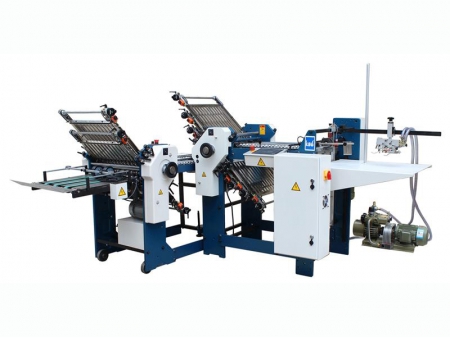

KMD’s 470T buckle folder (2 buckles and 4 buckles): This equipment carries out a two time parallel paper folding through the use of 2 buckles, and the tail buckles in the machine can be installed in either a horizontal or vertical direction to achieve 4 times horizontal parallel folds and 4 times vertical parallel folding. The folder can handle half folding, double parallel folding, roll folding and other fold types.

Parameters
  • Max feeding sheet size (W*L): 470*750mm
  • Min feeding sheet size (W*L): 50*100mm
  • Sheet range: 40-157g
  • Max folding roller speed: 180m/min
  • Max. height of paper heap: 500mm
  • Machine power: 3.3kw
  • Machine netweight: 700kg
  • Overall dimension (L*W*H) : 4000*1100*1415mm
