Glass Four Edge Grinding Machine

: http://glasswashingmachine.com/2-2-4-edge-horizontal-glass-grinding-machine.html

Horizontal 4-Edge Glass Grinder for Smooth Glass Edge Processing

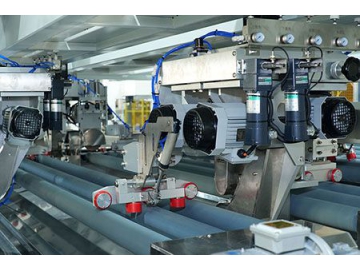

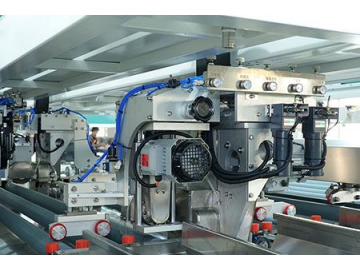

Four Grinding Heads

Yalong horizontal 4-edge glass grinder with four grinding heads allows for simultaneous processing of four glass edges. The automatic control system of the glass machine enables the glass grinding operation to be adapted to the actual glass thickness. This glass four edge grinding machine can deal with flat glass of size ranging from 350×700mm to 1600×3600mm, with thickness from 4mm to 10mm. If you have any doubt regarding to our glass edge grinding machines, please contact our experts and they are dedicated to providing solutions for glass edge grinding that are highly effective, highly precise, and energy-efficient.

Specifications

Model	Max. Glass	Min. Glass	Glass Thickness	Working Speed
YL-SM25-04	2500*3600mm	350*700mm	4-10mm	0-25m/min
YL-SM16-04	1600*2500mm	350*700mm	4-10mm	0-25m/min

Features

1. High efficiency
2. 1. Three beams and four grinding heads enable to perform chamfering on the four edges of glass
1. Simple operations

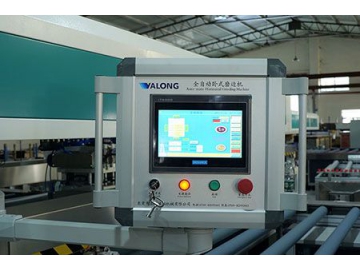

2. 1. HMI servo control system

  2. Auto detection of the glass size, thickness and position. Auto processing.
1. Energy saving
2. 1. Variable-frequency control and automatic induction of glass feeding. Energy saving mode will turn on if there is no glass input within 60s.
1. Application Versatility
2. 1. This four-head glass grinding machine is suitable for chamfering four edges of rectangle glass sheet, and performing glass washing.

  2. It is an ideal glass machine used for processing architectural glass, insulating glass, doors and windows.

Details
