4T Telescopic Boom Crane, STSQ4C

4T Telescopic Boom Crane, STSQ4C
4T Telescopic Boom Crane, STSQ4C
4T Telescopic Boom Crane, STSQ4C

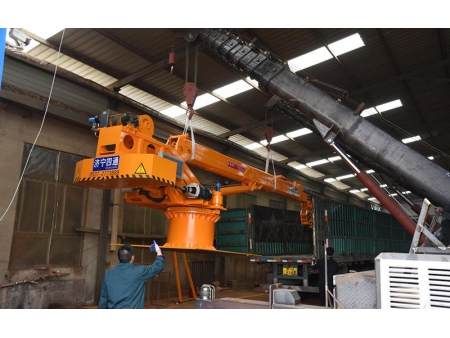

Our STSQ4C 4-ton telescopic boom crane is a shipboard crane featuring a telescopic boom that can serve a large working area on the vessel. The 5-section telescopic boom has lifting outreach of up to 16m. This telescopic marine crane is characterized by a simple design that helps simplifying the operation and maintenance, facilitating the loading and unloading of materials, without the need for tedious preparation steps.


Specification
Max. loading capacity
4t
Max. lifting height
16m
Boom
5 sections (4.5m per section)
Gearbox
WC120 reducer
Dimensions
7.5m*2.1m
Motor/pump
11kW explosion-proof motor / 40# pump
Hoisting speed
45m/min
Slewing speed
2.8r/min
