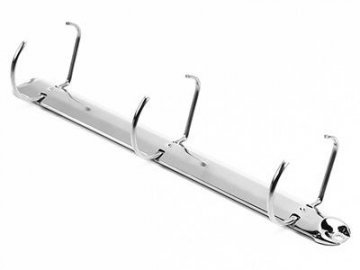

3 rings binder mechanism, D ring,280mm total length

3 rings binder mechanism, D ring,280mm total length
3 rings binder mechanism, D ring,280mm total length
Request a Quote
About Us: http://clipsmanufacturer.com/2-2-5-3-rings-binder-mechanism.html
Item No. Ring Distance Total Height Inner Height Outer Width Hole Distance Total Length Width of Mechanism
PD280-3-16/20 108/108 25 17.5 23.6 270 278 20
PD280-3-20/20 108/108 30.5 225 27.3 270 278 20
PD280-3-25/20 108/108 35.2 27.3 29.4 270 278 20
PD280-3-30/20 108/108 39.2 31.5 34 270 278 20
PD280-3-35/26 108/108 46 36.5 38.8 270 278 26
PD280-3-40/26 108/108 50 40 40 270 278 26
PD280-3-45/26 108/108 55.4 45 45.8 270 278 26
PD280-3-50/26 108/108 61.2 51 48.8 270 278 26
PD280-3-50/36 108/108 65.5 53 54.5 270 279 36
PD280-3-60/36 108/108 74 608 57.5 270 279 36
PD280-3-65/36 108/108 82 69 59.8 270 279 36
Also we could manufacture 4 rings of 280mm height
Item No. Ring Distance Total Height Inner Height Outer Width Hole Distance Total Length Width of Mechanism
PD280-4-16/17 80/80/80 25 18 22.2 270 278 16.7
PD280-4-20/17 80/80/80 30.6 23 26.8 270 278 16.7
PD280-4-25/17 80/80/80 34 26.5 30.5 270 278 16.7
PD280-4-30/26 80/80/80 42.7 32.4 36.6 270 278 26
PD280-4-35/26 80/80/80 45.2 35.7 40.3 270 278 26
PD280-4-40/26 80/80/80 51.4 41.7 43.8 270 278 26
PD280-4-45/26 80/80/80 58.5 48.2 48.2 270 278 26
PD280-4-65/36 80/80/80 82 69.5 59.8 270 279 36
