4 Buckle Paper Folder

4 Buckle Paper Folder
4 Buckle Paper Folder
4 Buckle Paper Folder
: http://folding-machines.com/2-2-5-4-buckle-paper-folder.html

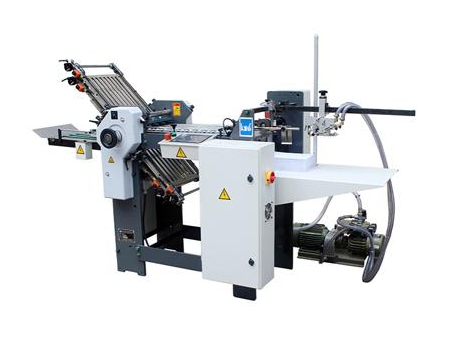

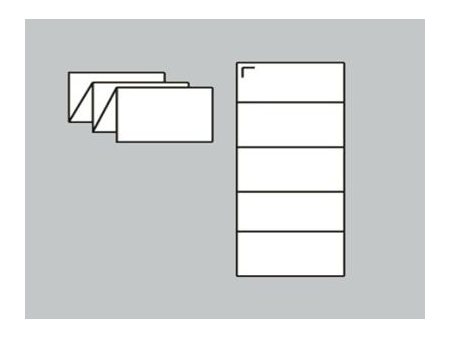

KMD’s 4 buckle paper folder has a maximum paper size of 470×750mm, and is equipped with 4 buckle plates in order to carry out 4 times parallel folding, and it can also be configured with2 tail buckles, 4 tail buckles, 6 tail buckles, 8 tail buckles, or 10 tail buckles according to the requirements needed to achieve different complex folding methods such as: half folding, double parallel folding, roll folding and more.

Parameters
  • Max feeding sheet size (W*L): 470*750mm
  • Min feeding sheet size (W*L): 50*100mm
  • Sheet range: 40-157g
  • Max folding roller speed: 180m/min
  • Max. height of paper heap: 500mm
  • Machine power: 3kw
  • Machine netweight: 400kg
  • Overall dimension (L*W*H) : 2750*1000*1415mm
