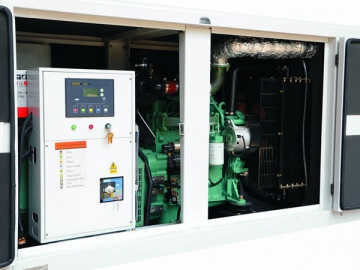

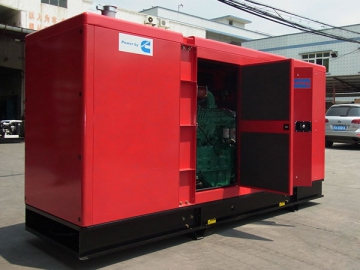

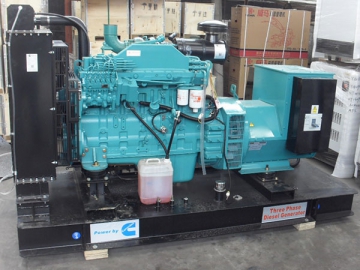

Cummins Diesel Generator, CK32000
Technical Parameters
| Model | CK32000 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 275.0 | 302.5 |
| KW | 220.0 | 242.0 | |
| Rated Power | KVA | 250.0 | 275.0 |
| KW | 200.0 | 220.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 361 | 397 |
| Fuel Consumption | G/KW.H | ≤197 | |
| Generator Controller | Auto Multi-function | ||
| Engine Model. | 6LTAA8.9-G2 | ||
| Alternator Model. | TCU288F | ||
| Clinder No. | 6/L | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size (MM) | Silent Type | 3800*1200*1900 | |
| Open Type | 2650*1050*1540 | ||
| Optional | ATS (auto transfer switch) | ||
