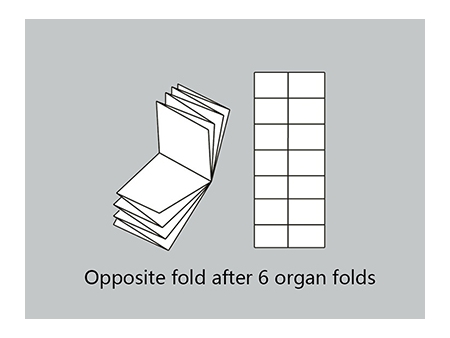

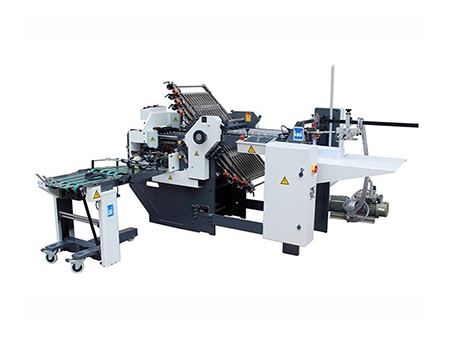

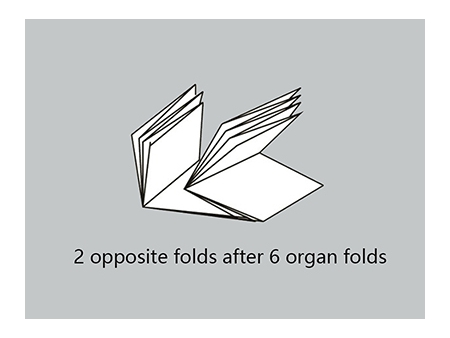

KMD’s 470T paper folder is composed of six buckles and two electric control knives. Paper is first passed through the two buckles in order to achieve a 6 time parallel folding, then 2 time cross folding with the use of the electric control knife. The folder then achieves half folding, double parallel folding and more.

Parameters
  • Max feeding sheet size (W*L): 470*750mm
  • Min feeding sheet size (W*L): 50*100mm
  • Sheet range: 40-157g
  • Max folding roller speed: 180m/min
  • Max. height of paper heap: 500mm
  • Machine power: 3kw
  • Machine netweight: 500kg
  • Overall dimension (L*W*H) : 2900*1600*1415mm
  • Max folding knife stroke: 200times/min
