EMT02 2 Flute Carbide Router Bit, Long Length

EMT02 2 Flute Carbide Router Bit, Long Length
EMT02 2 Flute Carbide Router Bit, Long Length
EMT02 2 Flute Carbide Router Bit, Long Length
: http://metalworking-tool.com/2-2-emt02-carbide-hrc45-router-bits-2-flutes-long-length.html
  • Designed for low hardness materials (under HRc45) such as alloy steel, inconel, tools steel, carbon steel, prehardened steel, stainless steel, titanium alloy
  • Provides excellent surface finishes on the workpieces
  • Center & slotting cutting

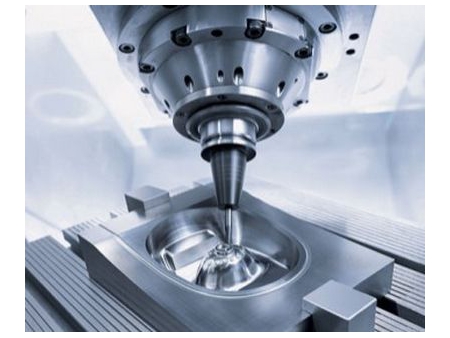

Application
Product Specifications
Coating AITiN /TiALN /TiSiN HRC HRC35/45
Helix Angle 35°/36°/37° Shank Cylindrical H6
Material IMC™ Carbide Rod Tolerance on Cutting Diameter 0-0.030
Carbide, HRC45 Router bits, 2 Flutes（UNT-EMT02）
Unit: mm
UNT EDP # Click to Order Mill Dia.
D1 		Shank Dia.
D2 		Flute Length
L1 		O.A.L.
L2 		Flutes
EMT02010075 1.0 4 5 75 2
EMT02015075 1.5 4 6 75 2
EMT02020075 2.0 4 8 75 2
EMT02025075 2.5 4 8 75 2
EMT02030075 3.0 4 10 75 2
EMT02040075 4.0 4 12 75 2
EMT02040100 4.0 4 12 100 2
EMT020100756 1.0 6 5 75 2
EMT020150756 1.5 6 6 75 2
EMT020200756 2.0 6 8 75 2
EMT020250756 2.5 6 8 75 2
EMT020300756 3.0 6 10 75 2
EMT020400756 4.0 6 12 75 2
EMT02050075 5.0 6 16 75 2
EMT02060075 6.0 6 25 75 2
EMT02060100 6.0 6 30 100 2
EMT02080100 8.0 8 35 100 2
EMT02100100 10.0 10 40 100 2
EMT02120100 12.0 12 45 100 2
EMT02060150 6.0 6 35 150 2
EMT02080150 8.0 8 35 150 2
EMT02100150 10.0 10 40 150 2
EMT02120150 12.0 12 45 150 2
EMT02160150 16.0 16 60 150 2
EMT0220050 20.0 20 70 150 2

• Router bits with non-standard sizes or specifications not listed above can be customized according to customer needs.
